WJLXT971ALC.A4

64-LQFP, Single-Port, 10/100 Mbps PHY Transceiver, 3.3 V Operation, Low power consumption

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: WJLXT971ALC.A4

Brand:: Intel Corporation - Intel | Pack: QFP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. cathy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-06

From Other Seller

Part Number:WJLXT971ALC.A4
US $1.00 - 2.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

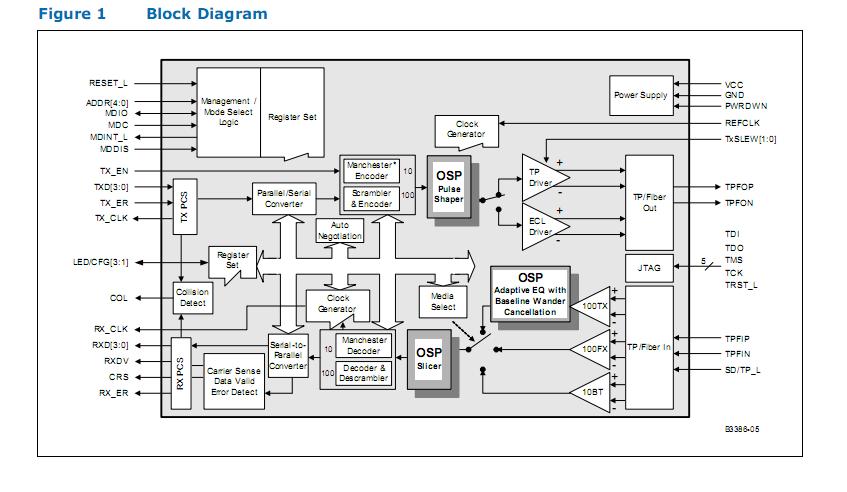

The WJLXT971ALC.A4 is a Single-Port 10/100 Mbps PHY Transceiver. It supports both 100BASE-TX and 10BASE-T applications. It provides a Media Independent Interface (MII) for easy attachment to 10/100 Media Access Controllers (MACs). The WJLXT971ALC.A4 is IEEE compliant, and provides a Low Voltage Positive Emitter Coupled Logic (LVPECL) interface for use with 100BASE-FX fiber networks. The applications of the WJLXT971ALC.A4 are Combination 10BASE-T/100BASE-TX or 100BASE-FX Network Interface Cards (NICs), Network printers, 10/100 Mbps PCMCIA cards, Cable Modems and Set-Top Boxes.

Parametrics

WJLXT971ALC.A4 absolute maximum ratings: (1)Supply Voltage:-0.3V to 4.0V; (2)Operating temperature (Commercial):-15℃ to +85℃; (3)Operating temperature (Extended):-55℃ to +100℃; (4)Storage Temperature:-65℃ to +150℃.

Features

WJLXT971ALC.A4 features: (1)3.3 V Operation; (2)Low power consumption (300 mW typical); (3)Low-power “Sleep” mode; (4)10BASE-T and 100BASE-TX using a single RJ-45 connection; (5)IEEE 802.3-compliant 10BASE-T or 100BASE-TX ports with integrated filters; (6)Auto-negotiation and parallel detection; (7)MII interface with extended register capability; (8)Robust baseline wander correction; (9)Carrier Sense Multiple Access / Collision Detection (CSMA/CD) or full-duplex operation; (10)JTAG boundary scan; (11)MDIO serial port or hardware pin configurable; (12)100BASE-FX fiber-optic capable; (13)Integrated, programmable LED drivers; (14)64-ball Plastic Ball Grid Array (PBGA) or 64-pin ; (15)Quad Flat Package (LQFP):Commercial (0℃ to 70℃ amb.).
