Product Summary

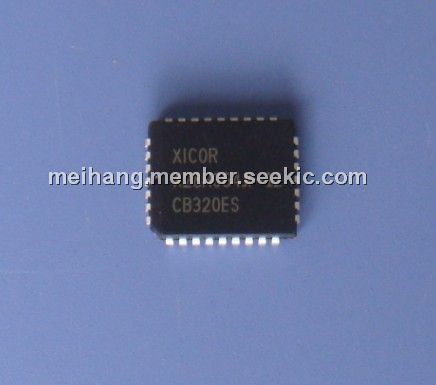

The X28HC64 is an 8K x 8 E2PROM, fabricated with Xicor proprietary, high performance, floating gate CMOS technology. Like all Xicor programmable nonvolatile memories the X28HC64 is a 5V only device. The X28HC64 features the JEDEC approved pinout for bytewide memories, compatible with industry standard RAMs. It supports a 64-byte page write operation, effectively providing a 32μs/byte write cycle and enabling the entire memory to be typically written in 0.25 seconds.

Parametrics

Absolute maximum ratings: (1)Temperature under Bias: –10℃ to +85℃ ; (2)Storage Temperature: –65℃ to +150℃ ; (3)Voltage on any Pin with Respect to VSS: –1V to +7V; (4)D.C. Output Current: 5mA; (5)Lead Temperature (Soldering, 10 seconds): 300℃.

Features

Features: (1)70ns Access Time; (2)Simple Byte and Page Write: Single 5V Supply; no External High Voltages or VPP Control Circuits; Self-Timed; no Erase Before Write; No Complex Programming Algorithms; No Overerase Problem; (3)Low Power CMOS: 40 mA Active Current Max; 200 μA Standby Current Max.; (4)Fast Write Cycle Times: 64 Byte Page Write Operation; Byte or Page Write Cycle: 2ms Typical; Complete Memory Rewrite: 0.25 sec. Typical; Effective Byte Write Cycle Time: 32μs Typical; (5)Software Data Protection; (6)End of Write Detection: DATA Polling; Toggle Bit; (7)High Reliability: Endurance: 1 Million Cycles; Data Retention: 100 Years; (8)JEDEC Approved Byte-Wide Pinout.

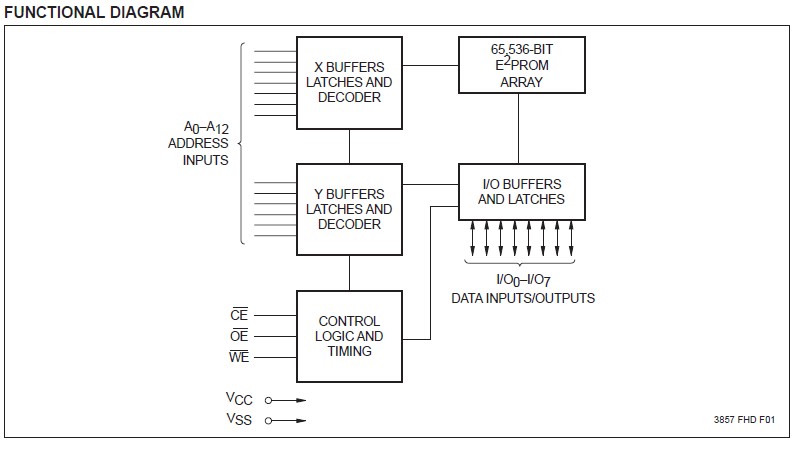

Diagrams
