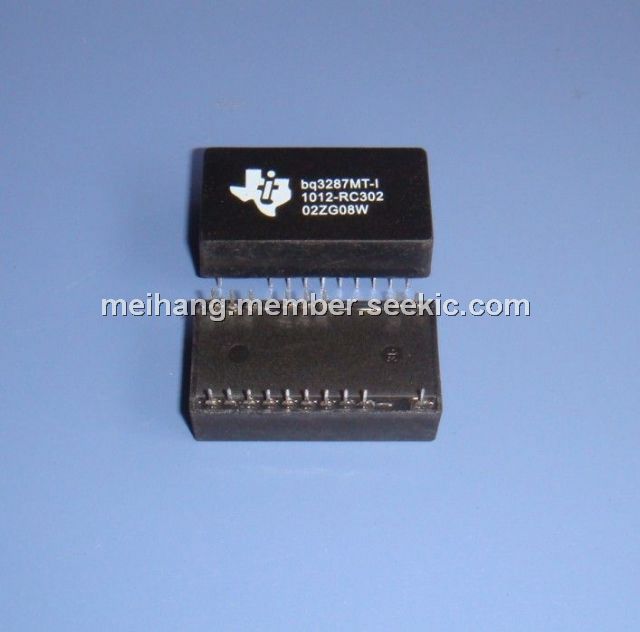

BQ3287MT-I

microprocessor, DIP-24, -0.3 to 7.0 V, Integral lithium cell and crystal, low-power

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~15.00

PartNumber:: BQ3287MT-I

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. cathy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-28

From Other Seller

Part Number:BQ3287MT-I
US $8.00 - 15.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CMOS BQ3287MT-I is a low-power microprocessor peripheral providing a time-of-day clock and 100-year calendar with alarm features and battery operation. Other features include three maskable interrupt sources, squarewave output, and 114 bytes of general nonvolatile storage.

Parametrics

BQ3287MT-I absolute maximum ratings: (1)DC voltage applied on VCC relative to VSS: -0.3 to 7.0 V; (2)VT; (3)DC voltage applied on any pin excluding VCC relative to VSS: -0.3 to 7.0 V VT≤VCC + 0.3; (4)Operating temperature: 0 to +70 ℃ at Commercial, -20 to +70 ℃ at Extended "I"; (5)Storage temperature: -40 to +70 ℃ at Commercial, -40 to +70 ℃ at Extended "I"; (6)Temperature under bias: -10 to +70 ℃ at Commercial, -20 to +70 ℃ at Extended "I"; (7)Soldering temperature: 260 ℃ For 10 seconds.

Features

BQ3287MT-I features: (1)Direct clock/calendar replacement for IBM AT-compatible computers and other applications; (2)Functionally compatible with the DS1287/DS1287A and MC146818A; (3)114 bytes of general nonvolatile storage; (4)Integral lithium cell and crystal; (5)160 ns cycle time allows fast bus operation; (6)Selectable Intel or Motorola bus timing; (7)14 bytes for clock/calendar and control; (8)BCD or binary format for clock and calendar data.
