Product Summary
The TMP93CS41DF is a high speed advanced 16-bit microcontroller developed for controlling medium large-scale equipment. The TMP93CS41DF does not have a ROM, but the TMP93CS40 has a buit-in ROM. Otherwise, the device fuction is housed in a 100-pin flat package.
Parametrics
Absolute maximum ratings: (1)power supply voltage, Vcc: -0.5V to 6.5V; (2)input voltage, Vin: -0.5V to Vcc+0.5V; (3)output current total, ∑iol: 120mA; (4)output current total, ∑ioh: -80mA; (5)power dissipation, Pd: 600mW; (6)soldering temperature, Tsolder: 260℃; (7)storage temperature range, Tstg: -65℃ to 150℃; (8)operating temperature range: -40℃ to 85℃.
Features
Features: (1)original 16-bit CPU (900/L CPU); (2)minimum instruction execution 200ns at 20MHz; (3)internal RAM 2Kbyte; (4)external memory expansion; (5)8-bit timer 2 channels; (6)8-bit PWM timer 2 channels; (7)16-bit timer 2 channels; (8)pattern generator 2 channels; (9)serial interface 2 channels; (10)10-bit AD converter 8 channels; (11)watchdog timer.

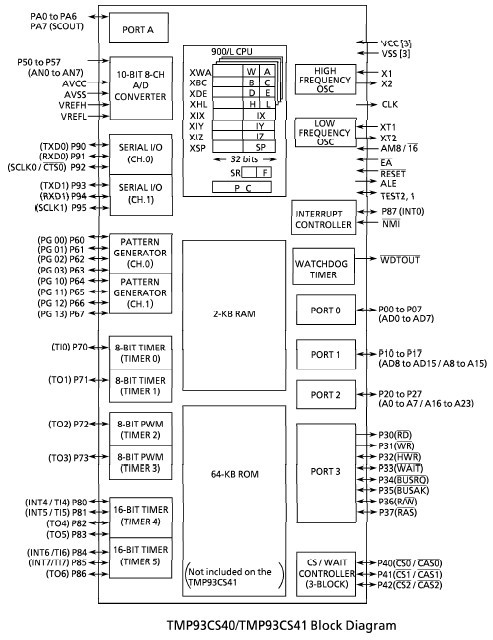

Diagrams
 |
