Product Summary
The TMS320VC5510AGGWA2 fixed point digital signal processor (DSP) is based on the TMS320C55x DSP generation CPU processor core. The C55x DSP architecture achieves high performance and low power through increased parallelism and total focus on eduction in power dissipation.
Parametrics
TMS320VC5510AGGWA2 absolute maximum ratings: (1)Supply voltage I/O range, DVDD: -0.3 V to 4.0 V; (2)Supply voltage core range, CVDD: -0.3 V to 2.0 V; (3)Input voltage range, VI: -0.3 V to 4.5 V; (4)Output voltage range, VO: - 0.3 V to 4.5 V; (5)Operating case temperature range, TC: (Commercial): -0℃ to 85℃; (Extended): -40℃ to 85℃; (6)Storage temperature range Tstg: -55℃ to 150℃.
Features
TMS320VC5510AGGWA2 features: (1)High-Performance, Low-Power; (2)Instruction Cache (24K Bytes); (3)16K × 16-Bit On-Chip ROM (32K Bytes); (4)8M × 16-Bit Maximum Addressable External Memory Space; (5)Programmable Low-Power Control of Six Device Functional Domains; (6)On-Chip Scan-Based Emulation Logic; (7)IEEE Std 1149.1 (JTAG) Boundary Scan Logic; (8)3.3-V I/O Supply Voltage; (9)1.6-V Core Supply Voltage.

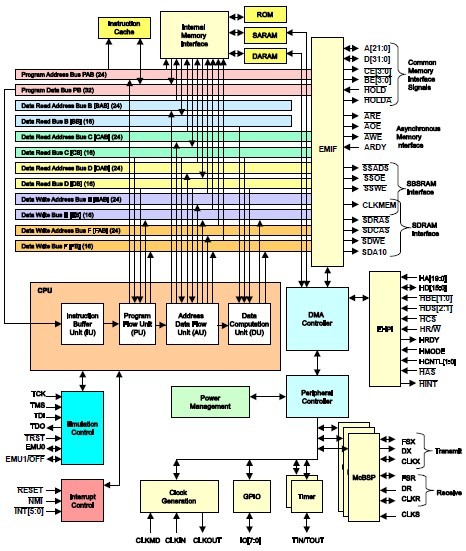

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

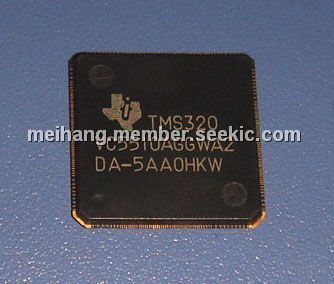

 TMS320VC5510AGGWA2 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Fixed-Point DSP |
Data Sheet |
|
|
||||||||||||
