Product Summary

The CS8900A-CQ3 is a low-cost Ethernet LAN Controller optimized for the Industry Standard Architecture (ISA) bus and general purpose microcontroller busses. The CS8900A-CQ3’s highly integrated design eliminates the need for costly external components required by other Ethernet controllers. The CS8900A-CQ3 includes on-chip RAM, 10BASE-T transmit and receive filters, and a direct ISA-Bus interface with 24 mA Drivers.

Parametrics

CS8900A-CQ3 absolute maximum ratings: (1)power supply digital: -0.3 to 6.0 V; (2)power supply analog: -0.3 to 6.0 V;(3)input current: ±10.0 mA;(4)analog input voltage: -0.3 to (AVDD+) +0.3 V;(5)digital input voltage:-0.3 (DVDD)+0.3 V; (6)ambient temperature: -55 to +125 ℃;(7)storage temperature: -65 to +150 ℃.

Features

CS8900A-CQ3 features: (1)single-chip IEEE 802.3 ethernet controller with direct ISA-Bus interface; (2)maximum current consumption=55 mA (5V supply); (3)3 V or 5 V operation; (4)industrial temperature range; (5)comprehensive suite of software drivers available; (6)full duplex operation; (7)on-Chip RAM buffers transmit and receive frames; (8)10BASE-T port with analog filters, provides: automatic polarity detection and correction; (9)AUI port for 10BASE2, 10BASE5 and 10BASE-F; (10)EEPROM support for jumperless configuration; (11)boot PROM support for diskless systems; (12)boundary scan and loopback test; (13)LED drivers for link status and LAN activity.

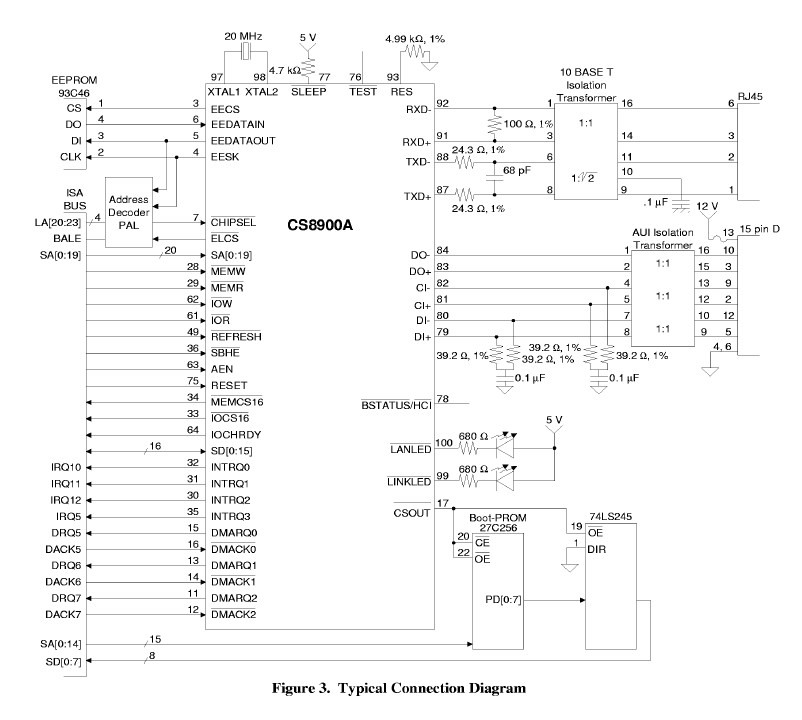

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CS8900A-CQ3
CS8900A-CQ3
Cirrus Logic
Ethernet ICs IC 10Mbps Ethernet Controller 3.3V
Data Sheet
Negotiable
CS8900A-CQ3R
CS8900A-CQ3R
Cirrus Logic
Ethernet ICs IC 10Mbps Ethernet Controller 3.3V
Data Sheet
Negotiable
CS8900A-CQ3Z
CS8900A-CQ3Z
Cirrus Logic
Ethernet ICs IC 10Mbps Ethernet Controller 3.3V
Data Sheet
0-1: $4.51
1-25: $4.26
25-50: $4.21
50-100: $4.09
CS8900A-CQ3ZR
CS8900A-CQ3ZR
Cirrus Logic
Ethernet ICs IC 10Mbps Ethernet Controller 3.3V
Data Sheet
0-386: $4.00
