Product Summary

The LF156H is the first monolithic JFET input operational amplifier to incorporate well matched, high voltage JFETs on the same chip with standard bipolar transistors (BI-FET Technology). The LF156H features low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust which does not degrade drift or common-mode rejection. The devices are also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise corner.

Parametrics

LF156H absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±40V; (3)Input Voltage Range: ±20V; (4)Output Short Circuit Duration Continuous; (5)TJMAX, H-Package 150℃; N-Package 100℃; M-Package 100℃; (6)Power Dissipation at TA = 25℃, H-Package (Still Air): 560 mW; H-Package (400 LF/Min Air Flow) 1200 mW; (7)Thermal Resistance (Typical) qJA, H-Package (Still Air) 160℃/W; H-Package (400 LF/Min Air Flow) 65℃/W; (8)(Typical) qJC, H-Package: 23℃/W; (9)Storage Temperature Range: -65℃ to +150℃.

Features

LF156H features: (1)Replace expensive hybrid and module FET op amps; (2)Rugged JFETs allow blow-out free handling compared with MOSFET input devices; (3)Excellent for low noise applications using either high or low source impedance, very low 1/f corner; (4)Offset adjust does not degrade drift or common-mode rejection as in most monolithic amplifiers; (5)New output stage allows use of large capacitive loads (5,000 pF) without stability problems; (6)Internal compensation and large differential input voltage capability.

Diagrams

LF156H Simplified Schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

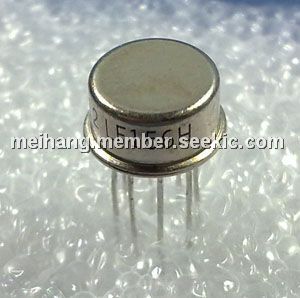

LF156H
LF156H

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-500: $3.61
500-1000: $3.53
LF156H/NOPB
LF156H/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-1: $5.13
1-25: $4.21
25-100: $3.79
100-250: $3.49
