Product Summary
The Mitel MT8816AE is a 8 x 16 Analog Switch Array, which is fabricated in MITEL’s ISOCMOS technology. The MT8816AE provides low power dissipation and high reliability. It contains a 8 x 16 array of crosspoint switches along with a 7 to 128 line decoder and latch circuits. Any one of the 128 switches can be addressed by selecting the appropriate seven address bits.
Parametrics
MT8816AE absolute maximum ratings: (1)Supply Voltage: -0.3 V min and 16.0 V max; (2)Analog Input Voltage: -0.3 V min and VDD+0.3 V max; (3)Digital Input Voltage: VSS-0.3 to VDD+0.3 V; (4)Current on any I/O Pin: ±15 mA; (5)Storage Temperature: -65 to +150 ℃; (6)Package Power Dissipation PLASTIC DIP: 0.6 W.
Features
MT8816AE features: (1)Internal control latches and address decoder; (2)Short set-up and hold times; (3)Wide operating voltage: 4.5V to 13.2V; (4)12Vpp analog signal capability; (5)RON 65W max. @ VDD=12V, 25℃; (6)△RON≤10W @ VDD=12V, 25℃; (7)Full CMOS switch for low distortion; (8)Minimum feedthrough and crosstalk; (9)Separate analog and digital reference supplies; (10)Low power consumption ISO-CMOS technology.

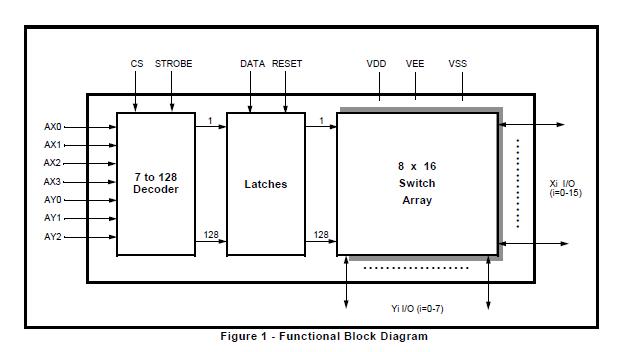

Diagrams
