Product Summary
The PRIXP421BB is a Network Processor. It is suitable for High-Performance DSL Modem and High-Performance Cable Modem and so on.
Parametrics
PRIXP421BB absolute maximum ratings: (1)Ambient Air Temperature (Extended): -40℃ to 85℃; (2)Ambient Air Temperature (Commercial): 0℃ to 70℃; (3)Supply Voltage Core: -0.3 V to 2.1V; (4)Supply Voltage I/O: -0.3 V to 3.6V; (5)Supply Voltage Oscillator (VCCOSC): -0.3 V to 2.1V; (6)Supply Voltage Oscillator (VCCOSCP): -0.3 V to 3.6V; (7)Supply Voltage PLL (VCCPLL1): -0.3 V to 2.1V; (8)Supply Voltage PLL (VCCPLL2): -0.3 V to 2.1V; (9)Voltage On Any I/O Ball: -0.3 V to 3.6V; (10)Storage Temperature: -55℃ to 125℃.
Features
PRIXP421BB features: (1)Three Network Processor Engines; (2)PCI Interface; (3)Two MII Interfaces; (4)UTOPIA-2 Interface; (5)USB v 1.1 Device Controller; (6)Two High-Speed, Serial Interfaces; (7)SDRAM Interface; (8)Encryption/Authentication; (9)High-Speed UART; (10)Console UART; (11)Internal Bus Performance Monitoring Unit; (12)16 GPIOs; (13)Four Internal Timers.

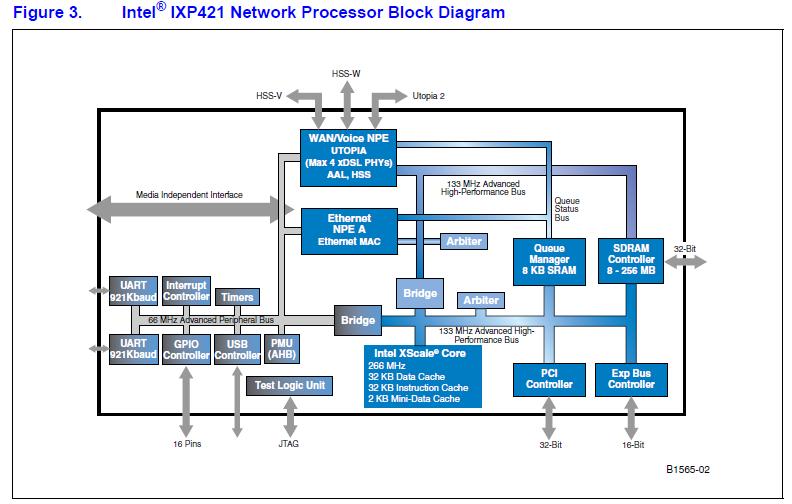

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PRIXP421BB |
|
IC NETWRK PROCESSR 266MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
PRIXP420ABD |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PRIXP420BB |
|
IC NETWRK PROCESSR 266MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||
|
PRIXP420BC |
|
IC NETWRK PROCESSR 400MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||
|
PRIXP420BD |
|
IC NETWRK PROCESSR 533MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||
|
PRIXP421BB |
|
IC NETWRK PROCESSR 266MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||
|
PRIXP422BB |
|
IC NETWRK PROCESSR 266MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||
