Product Summary
The TMP93PS40DFG is a microcontroller which has features in multifunction I/Os and large-capacity program and data areas.
Parametrics
TMP93PS40DFG general specifications: (1)WATCHDOG Timer:Y ; (2)RAM:2048 bytes ; (3)ROM:64 Kbytes ; (4)Number of Pins:100 ; (5)RoHS Compatible Product(s) (#):Available ; (6)ROM Type:OTP ; (7)Internal Bus Width:16 Bits ; (8)UART/SIO:2 Ch ; (9)10-Bit AD converter:8 Ch ; (10)8-Bit timer/counter:2 Ch ; (11)16-Bit timer/counter:2 Ch ; (12)Dual clock:Y ; (13)Clock gear:Y ; (14)CS / WAIT controller:3 Ch ; (15)8-Bit PWM timer:2 Ch ; (16)Pattern generator:2 Ch.
Features
TMP93PS40DFG features: (1)Upward compatible with TLCS-90: Upward compatibility on mnemonic and register set levels; (2)General-purpose registers: All 8 registers can be used as an accumulator; (3)Register bank system, One of the follwing mode can be selected: Minimum mode: eight 16-bit register banks, Maximum mode: four 32-bit register banks; (4)16 Mbyte linear address space; 9 types of addressing modes; (5)Dynamic bus sizing system: Can consist 8-/16-bit external data bus together; (6)Bit processing including bit arithmetic; (7)Supporting instruction for C compiler; (8)Filter calculations: multiplication-addition arithmetic, module increment instruction; (9)Minimum instruction execution time: 200 ns at 20 MHz (900/L); (10)Pipeline system with 4-byte instruction queue buffer; (11)16-bit ALU.

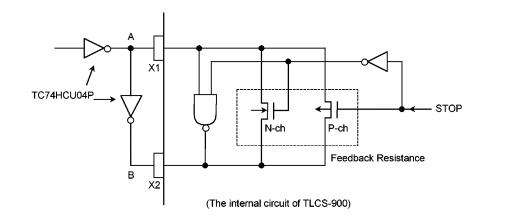

Diagrams
 |
