Product Summary

The XC95144-10PQ100 is a high-performance CPLD providing advanced in-system programming and test capabilities for general purpose logic integration. It is comprised of eight 36V18 Function Blocks, providing 3,200 usable gates with propagation delays of 7.5 ns. It is available in 100-pin PQFP, 100-pin TQFP, and 160-pin PQFP packages.

Parametrics

Absolute maximum ratings: (1)VCC, Supply voltage relative to GND: -0.5 to 7.0 V; (2)VIN, DC input voltage relative to GND: -0.5 to VCC + 0.5 V; (3)VTS, Voltage applied to 3-state output with respect to GND: -0.5 to VCC + 0.5 V; (4)TSTG, Storage temperature: -65 to +150 ℃; (5)TSOL, Max soldering temperature (10 s @ 1/16 in = 1.5 mm): +260 ℃.

Features

Features: (1)7.5 ns pin-to-pin logic delays on all pins; (2)fCNT to 111 MHz; (3)144 macrocells with 3,200 usable gates; (4)Up to 133 user I/O pins; (5)5 V in-system programmable: Endurance of 10,000 program/erase cycles; Program/erase over full commercial voltage and temperature range; (6)Enhanced pin-locking architecture; (7)Flexible 36V18 Function Block: 90 product terms drive any or all of 18 macrocells within Function Block; Global and product term clocks, output enables, set and reset signals; (8)Extensive IEEE Std 1149.1 boundary-scan (JTAG); (9)support; (10)Programmable power reduction mode in each macrocell; (11)Slew rate control on individual outputs; (12)User programmable ground pin capability; (13)Extended pattern security features for design protection; (14)High-drive 24 mA outputs; (15)3.3 V or 5 V I/O capability; (16)Advanced CMOS 5V FastFLASH technology; (17)Supports parallel programming of more than one XC9500 concurrently; (18)Available in 100-pin PQFP, 100-pin TQFP, and 160-pin PQFP packages.

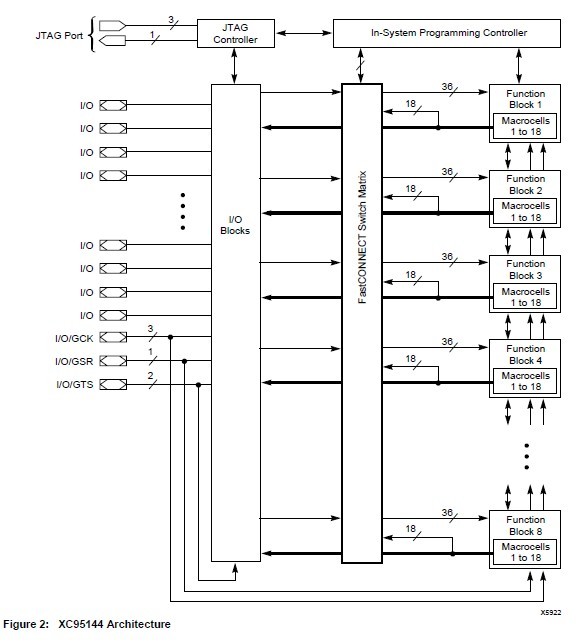

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
XC95144-10PQ100C
XC95144-10PQ100C

IC CPLD 144 MCELL C-TEMP 100PQFP
Data Sheet
Negotiable
XC95144-10PQ100I
XC95144-10PQ100I

IC CPLD 144 MCELL I-TEMP 100PQFP
Data Sheet
Negotiable
