Product Summary

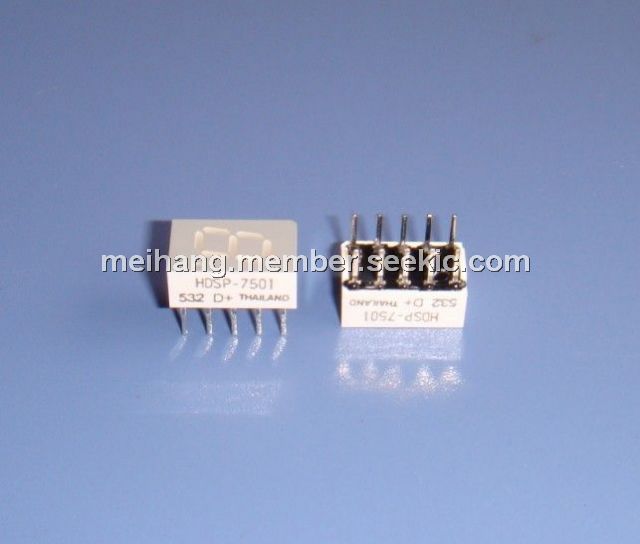

The HDSP-7501 is a 7.6 mm (0.3 inch) LED seven segments display which is designed for viewing distances up to 3 metres (10 feet). The device uses an industry standard size package and pinout. Both the numeric and ±1. overflow device features a right hand decimal point. The HDSP-7501 is available as either common anode or common cathode. It is ideal for most applications. Pin for pin equivalent displays are also available in a low current design.
Parametrics
HDSP-7501 absolute maxing ratings: (1)Average Power per Segment or DP: 105 mW; (2)Peak Forward Current per Segment or DP: 90mA; (3)DC Forward Current per Segment or DP: 30mA; (4)Operating Temperature Range: –40 to +100℃; (5)Storage Temperature Range: –55 to +100℃; (6)Reverse Voltage per Segment or DP: 3.0 V; (7)Wave Soldering Temperature for 3 Seconds (1.59 mm [0.063 in.] below Body): 250℃.
Features
HDSP-7501 features: (1)Categorized for luminous intensity: Yellow and Green categorized for color; Use of like categories yields a uniform display; (2)High light output; (3)High peak current; (4)Excellent for long digit string multiplexing; (5)Intensity and color selection available See Intensity and Color Selected Displays data sheet; (6)Sunlight viewable AlGaAs.

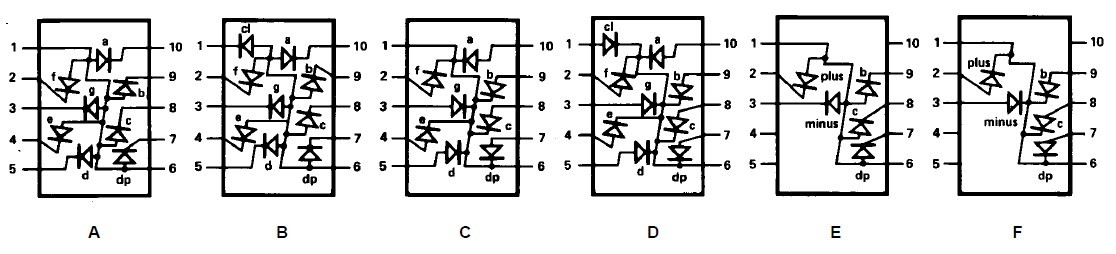

Diagrams
