Product Summary

The EP2C5Q208C8N is a Low-Cost Embedded Processing Solution. It contains a two-dimensional row- and column-based architecture to implement custom logic. Column and row interconnects of varying speeds provide signal interconnects between logic array blocks (LABs), embedded memory blocks, and embedded multipliers. The EP2C5Q208C8N provides a global clock network and up to four phase-locked loops (PLLs).

Parametrics

EP2C5Q208C8N absolute maximum ratings: (1)VCCINT Supply voltage With respect to ground: –0.5 to 1.8 V; (2)VCCIO Output supply voltage: –0.5 to 4.6 V; (3)VCCA_PLL, PLL supply voltage –0.5 to 1.8 V; (4)VIN DC input voltage: –0.5 to 4.6 V; (5)IOUT DC output current, per pin: –25 to 40 mA; (6)TSTG Storage temperature No bias: –65 to 150℃; (7)TJ Junction temperature BGA packages under bias: 125℃.

Features

EP2C5Q208C8N features: (1)M4K embedded memory blocks; (2)Up to 1.1 Mbits of RAM available without reducing available logic; (3)4,096 memory bits per block (4,608 bits per block including 512 parity bits); (4)Variable port configurations of ×1, ×2, ×4, ×8, ×9, ×16, ×18, ×32, and ×36; (5)True dual-port (one read and one write, two reads, or two writes) operation for ×1, ×2, ×4, ×8, ×9, ×16, and ×18 modes; (6)Byte enables for data input masking during writes; (7)Up to 260-MHz operation; (8)Up to 150 18- × 18-bit multipliers are each configurable as two independent 9- × 9-bit multipliers with up to 250-MHz performance; (9)Optional input and output registers.

Diagrams

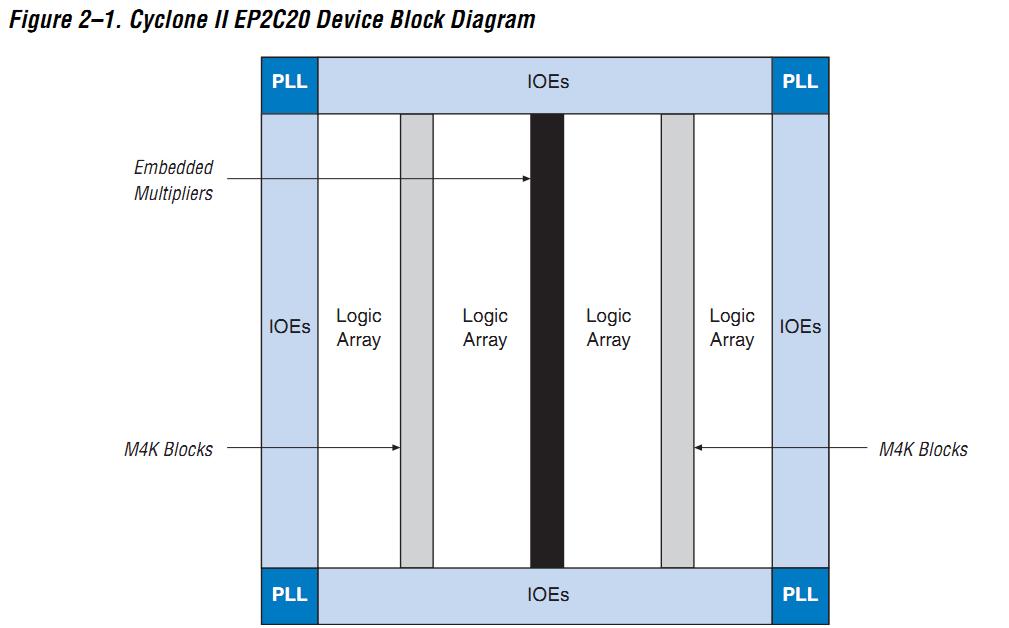

EP2C5Q208C8N blcok diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EP2C5Q208C8N
EP2C5Q208C8N

IC CYCLONE II FPGA 5K 208-PQFP
Data Sheet
