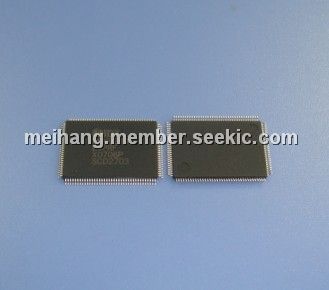

Product Summary
The IDT70V9269L9PRF is a high-speed 16K x 16 bit synchronous Dual-Port RAM. The memory array utilizes Dual-Port memory cells to allow simultaneous access of any address from both ports. With an input data register, the IDT70V9269L9PRF has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. Fabricated using IDT’s CMOS high-performance technology, the IDT70V9269L9PRF typically operates on only 429mW of power.
Parametrics
IDT70V9269L9PRF absolute maximum ratings: (1)Terminal Voltage with Respect to GND:-0.5 to +4.6 V; (2)Temperature Under Bias:-55℃ to +125℃; (3)StorageTemperature:-65℃ to +150℃; (4)Junction Temperature:+150℃; (5)DC Output Current:50 mA.
Features
IDT70V9269L9PRF features: (1)True Dual-Ported memory cells which allow simultaneous access of the same memory location; (2)High-speed clock to data access; (3)Low-power operation; (4)Flow-through or Pipelined output mode on either port via the FT/PIPE pin; (5)Counter enable and reset features; (6)Dual chip enables allow for depth expansion without additional logic; (7)Full synchronous operation on both ports; (8)4ns setup to clock and 1ns hold on all control, data, and address inputs; (9)Data input, address, and control registers; (10)Fast 6.5ns clock to data out in the Pipelined output mode; (11)Self-timed write allows fast cycle time; (12)10ns cycle time, 100MHz operation in Pipelined output mode; (13)Separate upper-byte and lower-byte controls for multiplexed bus and bus matching compatibility; (14)LVTTL- compatible, single 3.3V (±0.3V) power supply; (15)Industrial temperature range (-40℃ to +85℃) is available for selected speeds; (16)Available in a 128-pin Thin Quad Flatpack (TQFP) package.

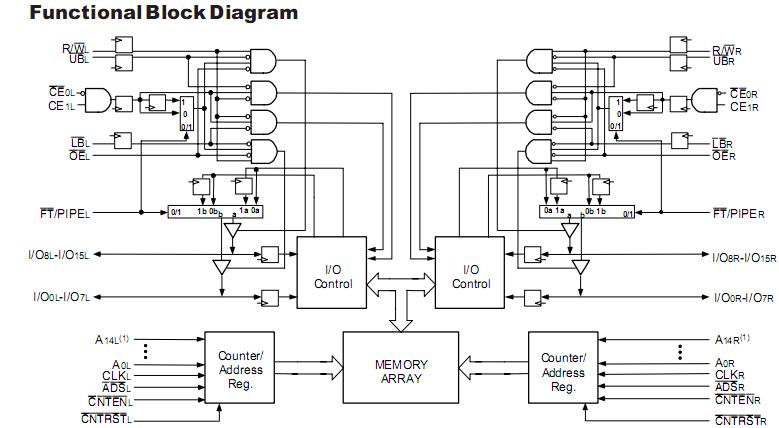

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IDT70V9269L9PRF |
|
IC SRAM 256KBIT 9NS 128TQFP |
Data Sheet |
|
|
||||||
|
IDT70V9269L9PRF8 |
|
IC SRAM 256KBIT 9NS 128TQFP |
Data Sheet |
|
|
||||||
