Product Summary
The TCD1707DG is a high sensitive and low dark current 7450 elements CCD image sensor. The sensor is designed for facsimile, imagescanner and OCR. The TCD1707DG contains a row of 7450 elements photodiodes which provides a 24 lines/mm (600DPI) across a A3 size paper. The device is operated by 5 V (pulse), and 12V power supply.
Parametrics
TCD1707DG absolute maxing ratings: (1)Clock Pulse Voltage y<f: -0.3-8V; (2)Shift Pulse Voltage VSH: -0.3-8V; (3)Reset Pulse Voltage VRS: -0.3-8V; (4)Clamp Pulse Voltage VCP: -0.3-8V; (5)Power Supply Voltage VOD: -0.3-15 V; (6)Operating Temperature Topr: 0-60 ℃; (7)Storage Temperature Tstg: -25-85 ℃.
Features
TCD1707DG features: (1)Number of Image Sensing Elements: 7450 elements; (2)Image Sensing Element Size: 4.7 jum by 4.7 jum on AJjum centers; (3)Photo Sensing Region High sensitive and low voltage dark signal pn photodiode; (4)Clock 2 phase (5 V); (5)Package 22 pin Cerdip.

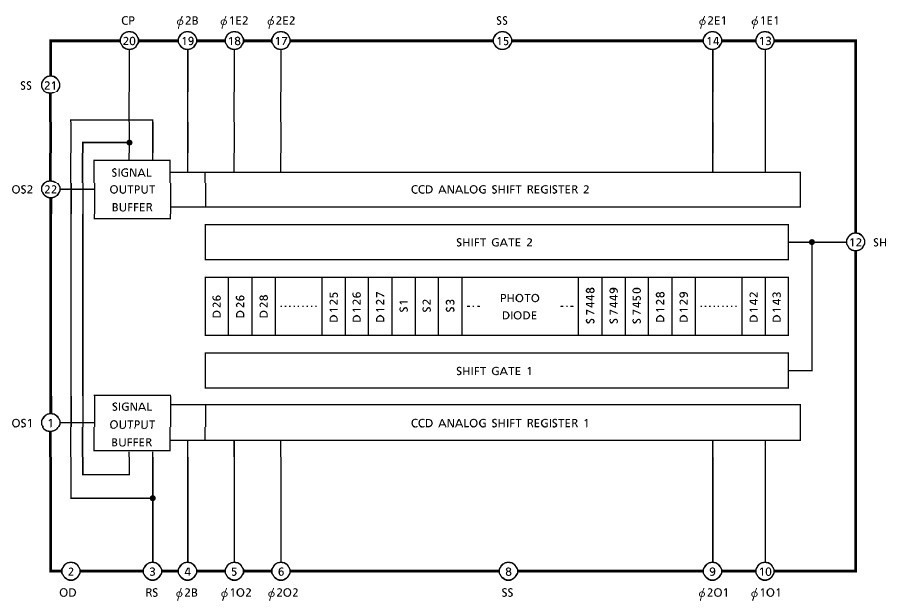

Diagrams
 |
