Product Summary
The PIC18F452-I/PT is a high performance, enhanced FLASH microcontroller with 10-bit A/D.
Parametrics
PIC18F452-I/PT absolute maximum ratings: (1)Ambient temperature under bias: -55℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR, and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS: 0V to +13.25V; (6)Voltage on RA4 with respect to Vss: 0V to +8.5V; (7)Total power dissipation: 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA.
Features
PIC18F452-I/PT features: (1)High Performance RISC CPU; (2)High current sink/source 25 mA/25 mA; (3)Three external interrupt pins; (4)Timer0 module: 8-bit/16-bit timer/counter with 8-bit programmable prescaler; (5)Timer1 module: 16-bit timer/counter; (6)Timer2 module: 8-bit timer/counter with 8-bit period register (time-base for PWM); (7)Timer3 module: 16-bit timer/counter; (8)Secondary oscillator clock option - Timer1/Timer3.

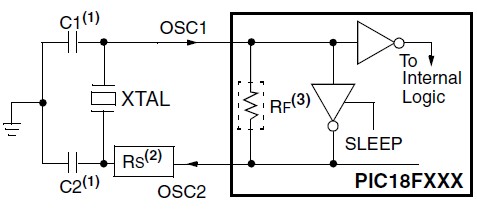

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PIC18F452-I/PT |
Microchip Technology |
8-bit Microcontrollers (MCU) 32KB 1536 RAM 34I/O |
Data Sheet |
|
|
||||||||||||
|
PIC18F452-I/PTG |
Microchip Technology |
8-bit Microcontrollers (MCU) 32KB 1536 RAM 34I/O |
Data Sheet |
Negotiable |
|
||||||||||||
