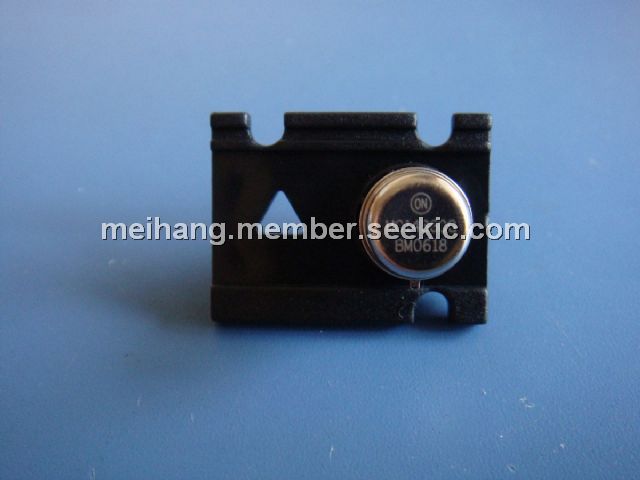

Product Summary

The MC1436CG is a Operational Amplifier. The MC1436CG is designed for use as a summing amplifier, integrator, or amplifier with operating characteristics as a function of the external feedback components.

Parametrics

MC1436CG absolute maximum ratings: (1)Power Supply Voltage, VCC: 30 Vdc; VEE: -30 Vdc; (2)Output Short circuit duration, ts: 5.0s; (3)power dissipation, PD: 680mW; derate above, PD: 4.6mW/℃; (4)Operating ambient temperature range, TA: 0 to 70 ℃; (5)Storage Temperature range, Tstg: -65 to 150 ℃.

Features

MC1436CG features: (1)Maximum supply voltage: ± 40 Vdc; (2)output voltage swing: ±30 Vpk; (3)input bias current: 20nA max; (4)Input offset current: 3.0 nA; (5)Fast Slew rate: 2.0 V/μs typ; (6)internally compensted; (7)Offset voltage null capability; (8)Input over voltage protection; (9)AVOL-500,000 typ; (10)Characteristics independent of power supply voltage.

Diagrams

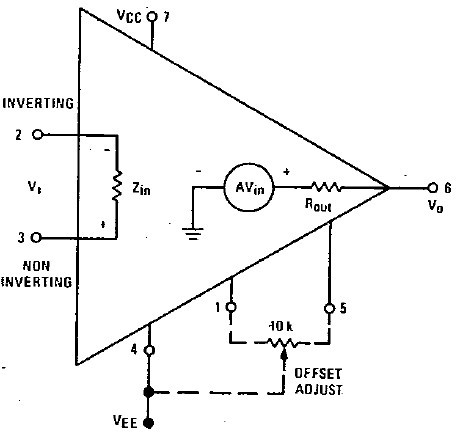

MC1436CG EQUIVALENT CIRCUIT
