Product Summary

The TMPN3150B1AFG is a Neuron Chip which configures LONWORKS nodes in combination with external memory. The TMPN3150B1AFG has all the built-in communications and control functions required to implement LONWORKS nodes. It may then be easily integrated into highly-reliable distributed intelligent control networks.

Parametrics

TMPN3150B1AFG absolute maximum ratings: (1)Power Supply Voltage:-0.3V to 7.0V ; (2)Input Voltage:-0.3V to VDD+0.3V ; (3)Power Dissipation:800mW ; (4)Storage Temperature:-65℃ to 150℃.

Features

TMPN3150B1AFG features: (1)Two CPUs for communication protocol processing built in; (2)The communications and application CPUs execute in parallel; (3)Equipped with a built-in LonTalk protocol which supports all seven levels of the OSI reference model with ISO; (4)Highly reliable communication protocol is supplied as firmware ; (5)Built-in twisted-pair wire transceiver ; (6)Equipped with communications modes and communication speeds which support various types of external transceivers ; (7)Supports twisted-pair wire, power line, radio ( RF ), infrared, coaxial cables and fiber optics; (8)Communication port transceiver modes and logical addresses stored within the EEPROM; (9)Can be amended via the network; (10)Eleven programmable I / O pins ; (11)Two programmable 16-bit timers and counters built in; (12)34 different types of I / O functions to handle a wide range of input and output; (13)ROM firmware image containing pre-programmed I / O ; (14)drivers, greatly simplifying application programs.

Diagrams

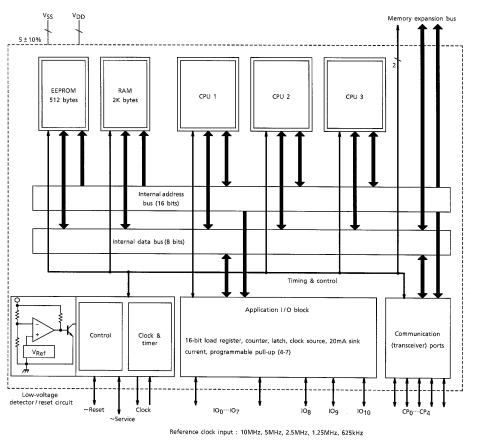

TMPN3150B1AFG block diagram
