Product Summary

The MSP430F149IPM is an ultralow-power microcontroller. It consists of several devices featuring different sets of peripherals targeted for various applications. The device MSP430F149IPM features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency.

Parametrics

MSP430F149IPM absolute maximum ratings: (1)Voltage applied at VCC to VSS: 0.3 V to + 4.1 V; (2)Voltage applied to any pin: 0.3 V to VCC+0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature (unprogrammed device): -55 to 150℃; (5)Storage temperature (programmed device): -40 to 85℃.

Features

MSP430F149IPM features: (1)Low Supply-Voltage Range, 1.8 V to 3.6 V; (2)Five Power-Saving Modes; (3)Wake-Up From Standby Mode in less than 6 μs; (4)16-Bit RISC Architecture, 125-ns Instruction Cycle Time; (5)12-Bit A/D Converter With Internal Reference, Sample-and-Hold and Autoscan Feature; (6)16-Bit Timer_B With Seven Capture/Compare-With-Shadow Registers; (7)16-Bit Timer_A With Three Capture/Compare Registers; (8)On-Chip Comparator; (9)Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse.

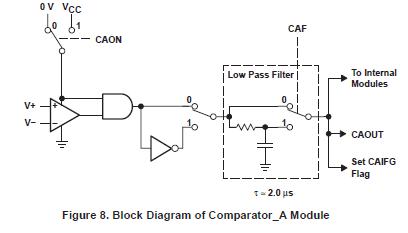

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MSP430F149IPM
MSP430F149IPM

Texas Instruments

16-bit Microcontrollers (MCU) 60 kB Flash 2KB RAM 12b ADC-2 USART-HW

Data Sheet

0-1: $6.28
1-10: $5.64
10-25: $5.02
25-50: $4.73
MSP430F149IPMG4
MSP430F149IPMG4

Texas Instruments

16-bit Microcontrollers (MCU) 16-bit Ultra-Lo-Pwr

Data Sheet

0-1: $6.28
1-10: $5.64
10-25: $5.02
25-50: $4.73
MSP430F149IPMR
MSP430F149IPMR

Texas Instruments

16-bit Microcontrollers (MCU) 60 kB Flash 2KB RAM 12b ADC-2 USART-HW

Data Sheet

0-1: $5.67
1-10: $5.09
10-25: $4.54
25-50: $4.28
MSP430F149IPMRG4
MSP430F149IPMRG4

Texas Instruments

16-bit Microcontrollers (MCU) 16 bit Ultra Lo Pwr

Data Sheet

0-790: $2.89
790-1000: $2.83
