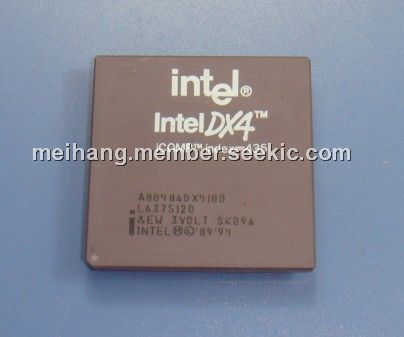

Product Summary

The A80486DX4100 microprocessor is a high performance 486 desktop solution that provides optimal price/performance for hig-end 486 power-managed systems. The A80486DX4100 offers superior local bus graphics performance.

Parametrics

A80486DX4100 absolute maximum ratings: (1)case temperature under bias: -65 to 110℃; (2)storage temperature: -65 to 150℃; (3)voltage on any pin: -0.5 to VCC+2.6V; (4)supply voltage: -0.5 to 4.6V.

Features

A80486DX4100 features: (1)operating voltage range 3.3V ±0.3V; (2)high integration on-chip; (3)hig-performance design; (4)complete 32-bit archltecture; (5)multiprocessor support; (6)standard 168-pin PGA package.

Diagrams

A80486DX4100 block diagram
