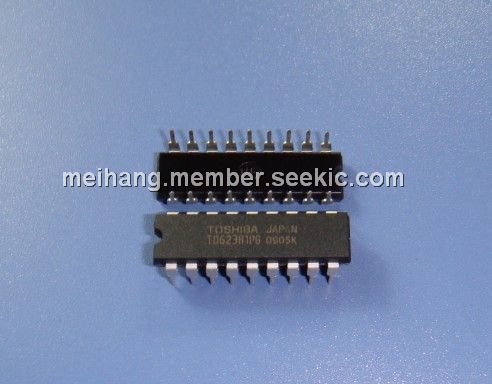

Product Summary
TD62381PG is an 8ch low saturation sink driver. The TD62381PG is comprised of eight NPN low saturation drivers. The TD62381PG is specifically designed for multiplexed digit driving of eight digit common-cathode LED and also can be employed as a sink driver for multiplexed LED displays using with the TD62381PG at standard supply voltage, 5V. Applications of the TD62381 include Finclude relay, hammer, lamp and LED display drivers.
Parametrics
TD62381PG absolute maximum ratings: (1)Supply Voltage:7V; (2)Output Sustaining Voltage: 15V; (3)Output Current: 500mA/ch; (4)Input Voltage: 7V; (5)Input Current: 5mA; (6)Power Dissipation: P=1.47W; F=0.96W ; (7)Operating Temperature: -40-85 ℃; (8)Storage Temperature: - 55- 150℃.
Features
TD62381PG features: (1)Low saturation output voltage: VQE (Sat) = 0.9V (Max.) lout = 500mA; (2)Output rating 15V (Min.)/500mA (Max.); (3)Input compatible with TTL and 5V CMOS; (4)Low level active inputs; (5)Standard supply voltage; (6)Package type-P : DIP-18pin; (7)Package type-F : SOP-18pin.

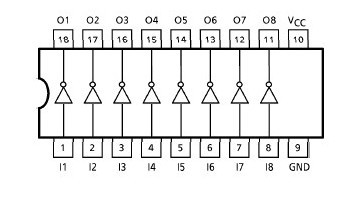

Diagrams
 |
