Product Summary

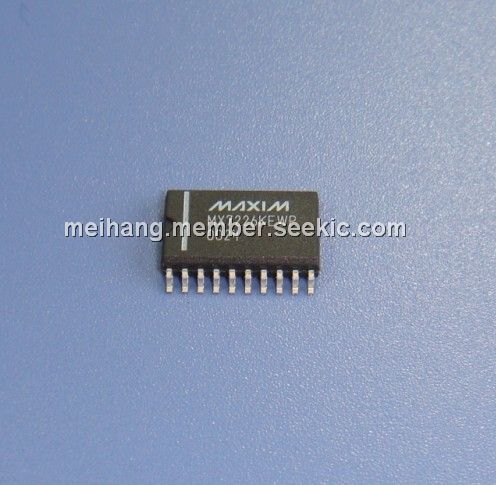

Maxim MX7226KEWP contains four 8-bit voltage output digital to analog converters(DACs). It includes output buffer amplifiers and input logic for simple microprocessor and TTL/CMOS interfaces. 8-bit performance is achieved over the full operating temperature range without external trimming. The MX7226KEWP has separate input registers for each of its four DACs. Data is transferred into an input register from a common 8-bit TTL/CMOS-compatible input port. Address inputs A0 and A1 determine which DAC is loaded when WR goes low. All DACs share a common reference input.

Parametrics

MX7226KEWP absolute maximum ratings: (1)VDD to AGND: -0.3V to 17V; (2)VDD to DGND: -0.3V to 17V; (3)VSS to AGND: -7V to VDD; (4)VSS to DGND: -7V to VDD; (5)VDD to VSS: -0.3 to 24 V; (6)Digital Input Voltage to DGND: -0.3 to VDD; (7)VREF to AGND: -0.3V to VDD; (8)Vout to AGND: VSS to VDD; (9)Power Dissipation to 75℃: 500mW; Derating above 75℃: 2mW/℃; (10)Operatings Temperature: 0 to 70℃; (11)Storage Temperature: -65℃ to 150℃; (12)Lead Temperature: 300℃.

Features

MX7226KEWP features: (1)Buffered Voltage Output; (2)Double Buffered Inputs; (3)Microprocessor and TTL/CMOS Compatible; (4)Operate from Single or Dual Supplies; (5)Require No External Adjustments.

Diagrams

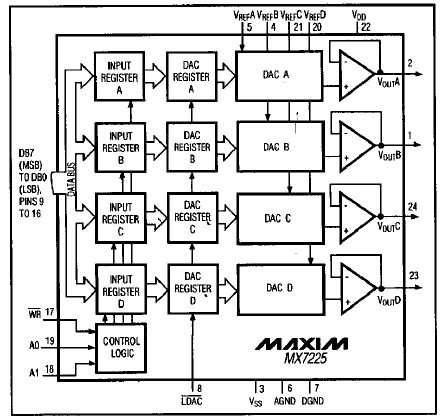

MX7226KEWP block diagram
