Product Summary

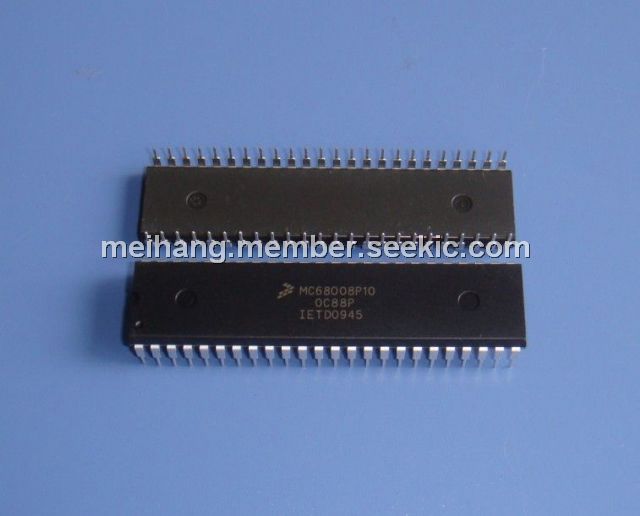

The MC68008P10 is an advanced microprocessor. It allows the design of cost-effective systems using 8-bit data buses while providing the benefits of a 32-bit microprocessor architecture. The MC68008P10 is available as a 48-pin dual-in-line package (plastic or ceramic) and 52-pin plastic leaded chip carrier. The additional four pins of the 52-pin package allow for additional signals: A20, A21, BGACK, and IPL2. The 48-pin version supports a 20-bit address that provides a 1-Mbyte address space; the 52-pin version supports a 22-bit address that extends the address space to 4 Mbytes. The 48-pin MC68008P10 contains a simple two-wire arbitration circuit; the 52-pin MC68008 contains a full three-wire MC68000 bus arbitration control. Both versions are designed to work with daisy-chained networks, priority encoded networks, or a combination of these techniques.

Parametrics

MC68008P10 absolute maximum ratings: (1)Supply Voltage: –0.3 to 7.0 V; (2)Input Voltage: –0.3 to 7.0 V; (3)Maximum Operating: TA TL to TH ℃; (4)Temperature Range: 0 to 70 ℃; (5)Commerical Extended "C" Grade: -40 to 85 ℃; (6)Commerical Extended "I" Grade: 0 to 85 ℃; (7)Storage Temperature: -55 to 150 ℃.

Features

MC68008P10 features: (1)16 32-Bit Data and Address Registers; (2)16-Mbyte Direct Addressing Range; (3)Program Counter; (4)6 Powerful Instruction Types; (5)Operations on Five Main Data Types; (6)Memory-Mapped Input/Output (I/O); (7)14 Addressing Modes.

Diagrams

MC68008P10 Read and Write-Cycle Timing Diagram
