M37753FFCFP

Product Summary

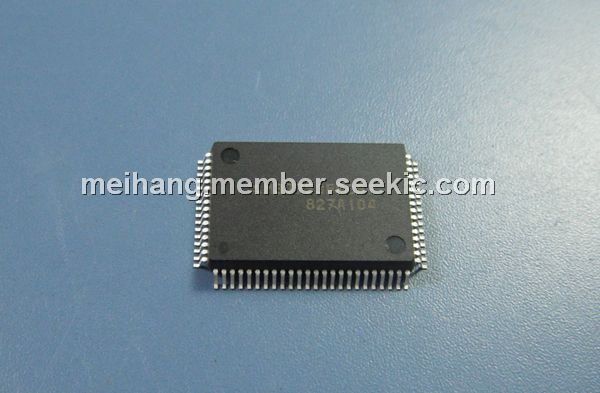

The M37753FFCFP and the M37753FFCHP are single-chip microcomputers designed with high-performance CMOS silicon gate technology, including the internal flash memory. These are housed in 80-pin plastic molded QFP. These microcomputers have a CPU and a bus interface unit. The CPU is a 16-bit parallel processor that can also be switched to perform 8-bit parallel processing, and the bus interface unit enhances the memory access efficiency to execute instructions fast. In addition to the 7700 Family basic instructions, the In addition to the 7700 Family basic instructions, the M37753FFCFP and the M37753FFCHP have 6 special instructions which contain instructions for signed multiplication/division; these added instructions improve the servo arithmetic performance to control hard disk drives and so on.

Parametrics

M37753FFCFP absolute maximum ratings: (1)VCC Power source voltage: –0.3 to 7V; (2)AVCC Analog power source voltage: –0.3 to 7V; (3)VI Input voltage RESET, CNVSS, BYTE: –0.3 to 12V; (4) VI Input voltage P00–P07, P10–P17, P20–P27, P30–P33, P40–P47, P50–P57, P60–P67, P70–P77, P80–P87, VREF, XIN: –0.3 to VCC+0.3V; (5) VO Output voltage P00–P07, P10–P17, P20–P27, P30–P33, P40–P47, P50–P57, P60–P67, P70–P77, P80–P87, XOUT, E: –0.3 to VCC+0.3V; (6)Pd Power dissipation 300mW; (7)Topr Operating temperature: –20 to 85℃; (8)Tstg Storage temerature: –40 to 150℃.

Features

M37753FFCFP features: (1)Number of basic machine instructions: 109(103 basic instructions of 7700 Family + 6 special instructions); (2)Memory size Flash memory: 120 Kbytes; RAM: 3968 bytes; (3)Instruction execution time, The fastest instruction at 40 MHz frequency: 100 ns; (4)Single power supply: 5V ±10 %; (5)Low power dissipation (at 40 MHz frequency): 125 mW (Typ.); (6)Interrupts: 21 types, 7 levels; (7)Multiple-function 16-bit timer: 5+3(three-phase motor drive waveform or pulse motor control waveform output); (8)Serial I/O (UART or clock synchronous): 2; (9)10-bit A-D converter: 8-channel inputs; (10)8-bit D-A converter: 2-channel outputs; (11)12-bit watchdog timer; (12)Programmable input/output (ports P0—P8): 68; (13)Small package [M37753FFCHP]: 80-pin fine pitch QFP (lead pitch : 0.5 mm).

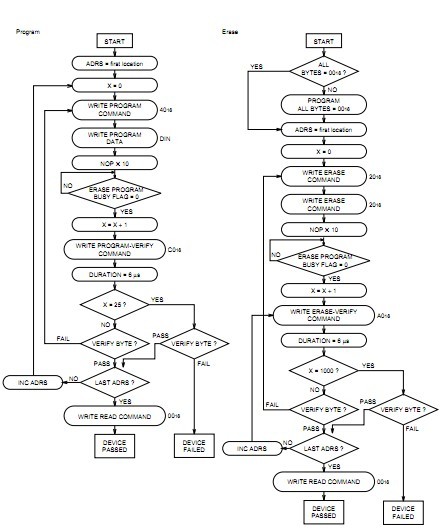

Diagrams
