Product Summary

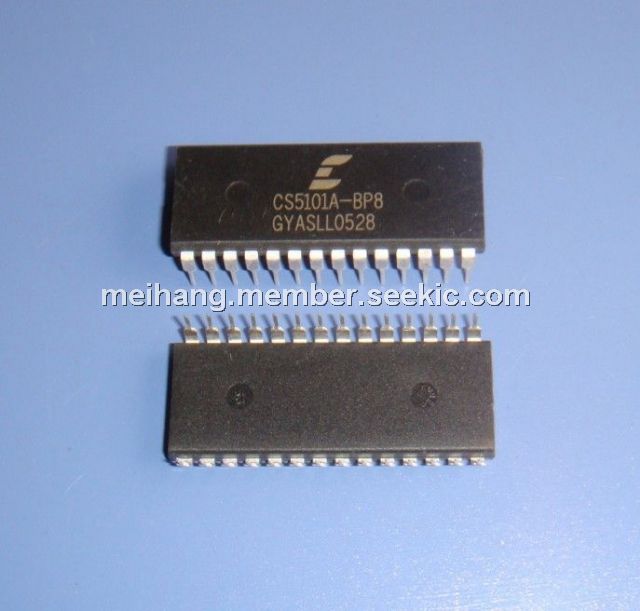

The CS5101A-BP8 is a 16-bit monolithic CMOS analog-to-digital converter capable of 100 kHz (5101A) and 20 kHz (5102A) throughput. The CS5101A-BP8’s low power consumption of 44 mW, coupled with a power down mode, makes it particularly suitable for battery powered operation.
Parametrics
CS5101A-BP8 absolute maximum ratings: (1)DC Power Supplies: Positive Digital: -0.3 to 6.0 V, Negative Digital: 0.3 to -6.0 V, Positive Analog: -0.3 to 6.0 V, Negative Analog: 0.3 to -6.0 V; (2)Input Current, Any Pin Except Supplies: ±10 mA; (3)Analog Input Voltage (AIN and VREF pins): (VA-)-0.3 to(VA+)+0.3 V; (4)Digital Input Voltage: -0.3 to (VA+)+0.3 V; (5)Ambient Operating Temperature: -55 to 125 ℃; (6)Storage Temperature: -65 to 150 ℃; (7)Ambient Operating Temperature: -55 to 125 ℃; (8)Storage Temperature: -65 to 150 ℃.
Features
CS5101A-BP8 features: (1)Monolithic CMOS A/D Converters: Inherent Sampling Architecture, 2-Channel Input Multiplexer, Flexible Serial Output Port; (2)Ultra-Low Distortion: S/(N+D): 92 dB, THD: 0.001%; (3)Conversion Time: CS5101A: 8 μs, CS5102A: 40 μs; (4)Linearity Error: ±0.001% FS: Guaranteed No Missing Codes; (5)Self-Calibration Maintains Accuracy: Over Time and Temperature; (6)Low Power Consumption: CS5101A: 320 mW, CS5102A: 44 mW, Power-down Mode: <1 mW; (7)Evaluation Board Available.

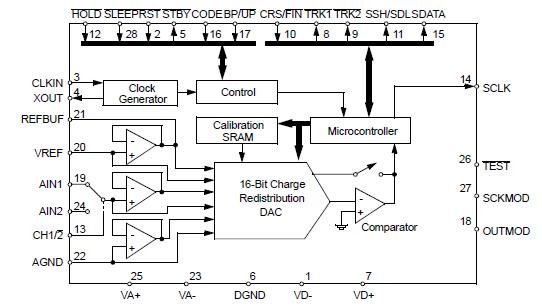

Diagrams
 |
