IDT71V424S15Y

Static RAM, SOJ, Integrated, -0.5 to +4.6 V, 50 mA, IDT71V424S15Y

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.82~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 30 :	1.00 / Piece
30 ~ 60 :	0.88 / Piece
60 ~ 200 :	0.82 / Piece

PartNumber:: IDT71V424S15Y

Brand:: Integrated Device Technology - IDT | Pack: SOJ | D/C: 10+

Availability:: Supply Ability: 200/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. cathy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-28

From Other Seller

Part Number:IDT71V424S15Y
US $0.82 - 1.00
Quantity:

piece

Product Summary

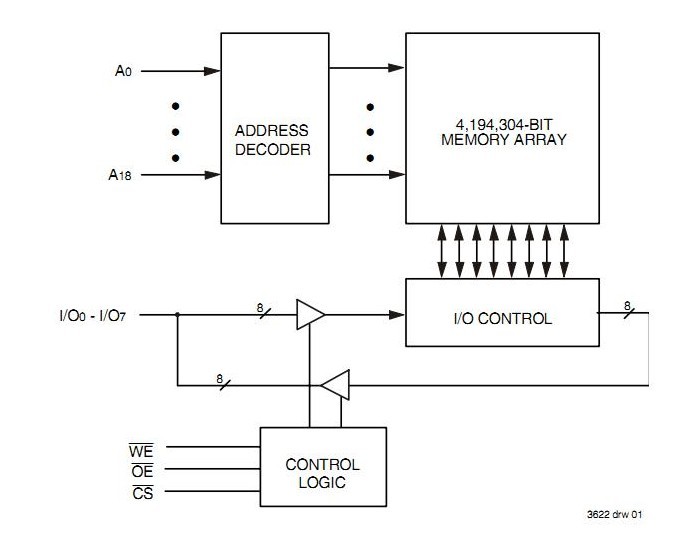

The IDT71V424S15Y is a 4,194,304-bit high-speed Static RAM organized as 512K x 8. It is fabricated using IDT’s high-perfomance, high-reliability CMOS technology. This state-of-the-art technology, combined with innovative circuit design techniques, provides a cost-effective solution for high-speed memory needs. The IDT71V424S15Y has an output enable pin which operates as fast as 5ns, with address access times as fast as 10ns. All bidirectional inputs and outputs of the IDT71V424S15Y are TTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation. The IDT71V424S15Y is packaged in a 36-pin, 400 mil Plastic SOJ and 44-pin, 400 mil TSOP.

Parametrics

IDT71V424S15Y absolute maximum ratings: (1)VDD, Supply Voltage Relative to VSS: -0.5 to +4.6 V; (2)VIN, VOUT, Terminal Voltage Relative to VSS: -0.5 to VDD+0.5 V; (3)TBIAS, Temperature Under Bias: -55 to +125℃; (4)TSTG, Storage Temperature: -55 to +125℃; (5)PT, Power Dissipation: 1 W; (6)IOUT, DC Output Current: 50 mA.

Features

IDT71V424S15Y features: (1)512K x 8 advanced high-speed CMOS Static RAM; (2)JEDEC Center Power / GND pinout for reduced noise; (3)Equal access and cycle times: Commercial and Industrial: 10/12/15ns; (4)Single 3.3V power supply; (5)One Chip Select plus one Output Enable pin; (6)Bidirectional data inputs and outputs directly TTL-compatible; (7)Available in 36-pin, 400 mil plastic SOJ package and 44-pin, 400 mil TSOP.
