Product Summary

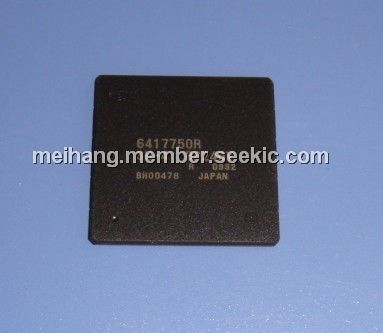

The HD6417750RBP240V is a 32-bit RISC (reduced instruction set computer) microprocessor with a SH-4 CPU core and features upward compatibility with SH-1, SH-2, and SH-3 microcomputers at the instruction set level. The HD6417750RBP240V includes an instruction cache, an operand cache with a choice of copy-back or write-through mode, and an MMU (memory management unit) with a 64-entry fully-associative unified TLB (translation lookaside buffer). The HD6417750RBP240V has an 8-Kbyte instruction cache and a 16-Kbyte data cache.

Parametrics

HD6417750RBP240V absolute maximum ratings: (1)I/O, PLL, RTC, CPG power supply voltage:–0.3V to 4.2V, –0.3V to 4.6V ; (2)Internal power supply voltage:–0.3V to 2.5V, –0.3V to 2.1V; (3)Input voltage:–0.3V to VDDQ +0.3V ; (4)Operating temperature:–20℃ to 75℃; (5)Storage temperature:–55℃ to 125℃.

Features

HD6417750RBP240V features: (1)Superscalar architecture (providing simultaneous execution of two instructions) including FPU ; (2)Instruction execution time: Maximum 2 instructions/cycle ; (3)Virtual address space: 4 Gbytes (448-Mbyte external memory space) ; (4)Space identifier ASIDs: 8 bits, 256 virtual address spaces ; (5)On-chip multiplier ; (6)Five-stage pipeline ; (7)Fixed 16-bit instruction length for improved code efficiency ; (8)Load-store architecture ; (9)Delayed branch instructions ; (10)Conditional execution ; (11)C-based instruction set ; (12)Sixteen 32-bit general registers (and eight 32-bit shadow registers) ; (13)Seven 32-bit control registers ; (14)Four 32-bit system registers ; (15)Renesas Technology original SuperH architecture ; (16)32-bit internal data bus ; (17)Superscalar architecture: Parallel execution of two instructions ; (18)External buses ; (19)On-chip floating-point coprocessor ; (20)Supports single-precision (32 bits) and double-precision (64 bits) ; (21)Supports IEEE754-compliant data types and exceptions ; (22)Two rounding modes: Round to Nearest and Round to Zero ; (23)Handling of denormalized numbers: Truncation to zero or interrupt generation for compliance with IEEE754.

Diagrams

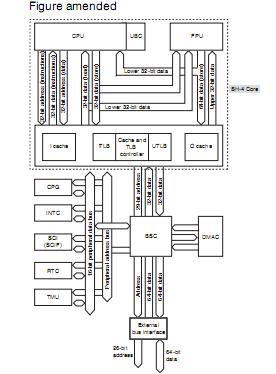

HD6417750RBP240V block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HD6417750RBP240V
HD6417750RBP240V


MPU 3V 16K PB-FREE 256-BGA

Data Sheet

0-1: $28.58
