Product Summary
The AT45DB041B-SU is an SPI compatible serial interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. Its 4,325,376 bits of memory are organized as 2048 pages of 264 bytes each. In addition to the main memory, the AT45DB041B-SU also contains two SRAM data buffers of 264 bytes each. To allow for simple in-system reprogrammability, the AT45DB041B-SU does not require high input voltages for programming. The device operates from a single power supply, 2.5V to 3.6V or 2.7V to 3.6V, for both the program and read operations. The AT45DB041B is enabled through the chip select pin (CS) and accessed via a threewire interface consisting of the Serial Input (SI), Serial Output (SO), and the Serial Clock (SCK).
Parametrics
AT45DB041B-SU absolute maximum ratings: (1)Temperature under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages(including NC Pins)with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltageswith Respect to Ground: -0.6V to VCC + 0.6V.
Features
AT45DB041B-SU features: (1)Single 2.5V - 3.6V or 2.7V - 3.6V Supply; (2)Serial Peripheral Interface (SPI) Compatible; (3)20 MHz Max Clock Frequency; (4)Page Program Operation: Single Cycle Reprogram (Erase and Program), 2048 Pages (264 Bytes/Page) Main Memory; (5)Supports Page and Block Erase Operations; (6)Two 264-byte SRAM Data Buffers – Allows Receiving of Data while Reprogramming the Flash Memory Array; (7)Continuous Read Capability through Entire Arra; (8)Low Power Dissipation; (9)Hardware Data Protection Feature; (10)Commercial and Industrial Temperature Ranges; (11)Green (Pb/Halide-free/RoHS Compliant) Package Options.

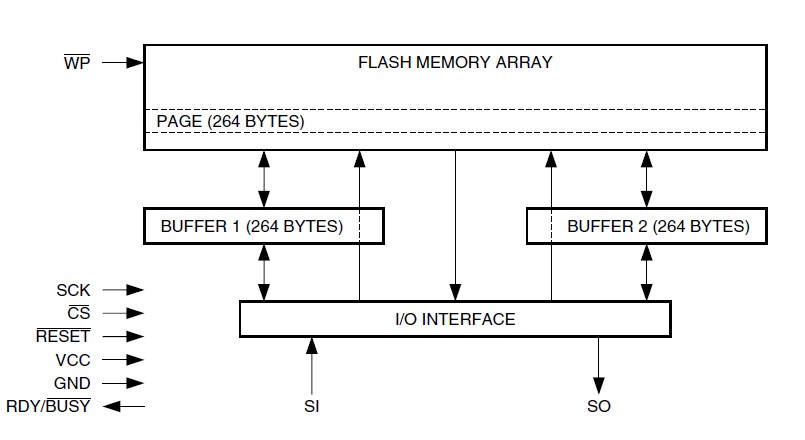

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT45DB041B-SU |
Atmel |
Flash 4MBIT WAFER 7 MIL IND TEMP |
Data Sheet |
