Product Summary
The PIC16F72-I/SO is a 28-Pin, 8-Bit CMOS FLASH MCU with A/D Converter.
Parametrics
PIC16F72-I/SO absolute maximum ratings: (1)Maximum Clock Frequency: 20 MHz; (2)Operating Supply Voltage: 2 V to 5.5 V; (3)Maximum Operating Temperature: + 85 C; (4)Minimum Operating Temperature: - 40 C; (5)Supply Voltage-Max: 5.5 V; (6)Supply Voltage-Min: 2 V.
Features
PIC16F72-I/SO features: (1)1,000 erase/write cycle FLASH program memorytypical; (2)Power-on Reset (POR), Power-up Timer (PWRT)and Oscillator Start-up Timer (OST); (3)Watchdog Timer (WDT) with its own on-chipRC oscillator for reliable operation; (4)Programmable code protection; (5)Power saving SLEEP mode; (6)Selectable oscillator options; (7)In-Circuit Serial Programming (ICSP) via 2 pins; (8)Processor read access to program memory.

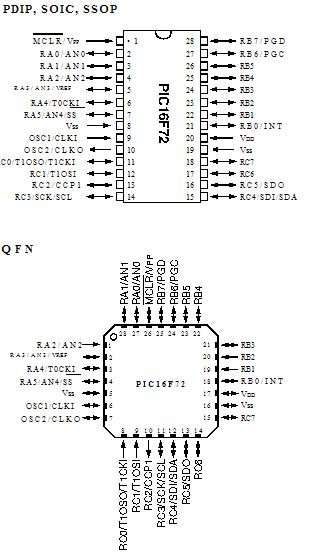

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PIC16F72-I/SO |
Microchip Technology |
8-bit Microcontrollers (MCU) 3.5KB 128 RAM 22 I/O |
Data Sheet |
|
|
|||||||||||||
PIC16F72-I/SO4AP |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
PIC16F72-I/SOG |
Microchip Technology |
8-bit Microcontrollers (MCU) 3.5KB 128 RAM 22 I/O Lead Free Package |
Data Sheet |
Negotiable |
|
