Product Summary

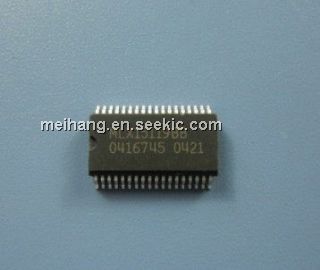

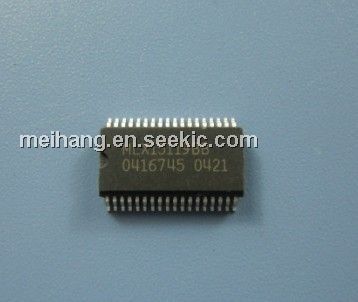

The MLX15119BB is a 5 channel gauge driver. The MLX15119BB controls two independent sets of CMOS power bridges. A ten-bit angle is displayed with a 9 bit per quadrant resolution PWM whose frequency is set by a crystal oscillator. A power-on self test detects open or short-circuit outputs for each logometer and a real time angle tracking avoids display errors. The MLX15119BB can also drive three small angle logometers (90°). A three wire serial link allows bidirectional communication with the MCU.

Parametrics

MLX15119BB absolute maximum ratings: (1)Storage Temperature Range Tstg: －40 +150 ℃; (2)Operating Temperature Range Tamb: －40 +85 ℃; (3)Supply Voltage Range VDD: －0.3, 14.0 V; (4)Input Voltage Range Vi: －0.3 VDD +0.3 V.

Features

MLX15119BB features: (1)Supply voltage up to 12 V; (2)Interface directly with 5 V CMOS logic MCUs; (3)Serial link; (4)Can drive two 360° actuators & three 90° actuators simultaneously; (5)Open circuit / short－circuit detection of the drivers outputs; (6)Small size (SO24 package); (7)Real Time Angle Tracking.

Diagrams

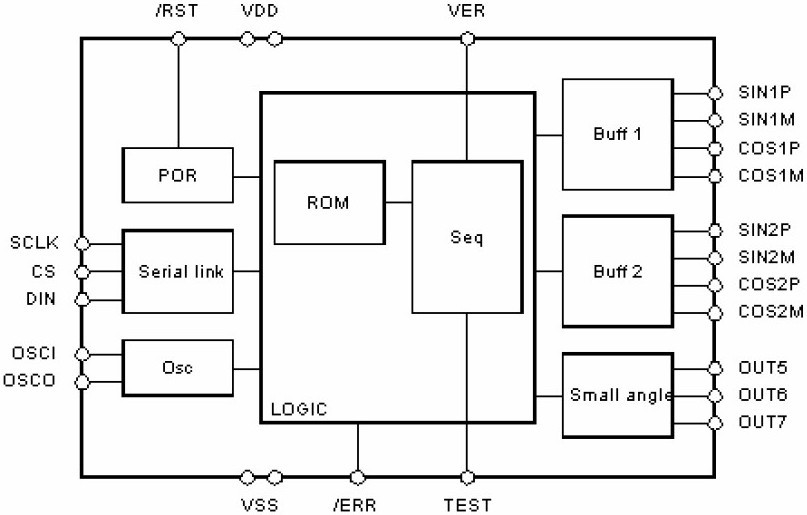

MLX15119BB block diagram
