Product Summary

The ISP752T is a smart power high-side-switch for industrial applications. N channel vertical power FET ISP752T with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS technology. Providing embedded protective functions. The applications of the ISP752T are: All types of resistive, inductive and capacitive loads. μC compatible power switch for 12 V, 24 V and 42 V DC industrial applications. Replaces electromechanical relays and discrete circuits.

Parametrics

ISP752T absolute maximum ratings: (1)Overvoltage protection Vbb(AZ): 62 V; (2)Operating voltage Vbb(on) 6 to 52 V; (3)On-state resistance RON: 200 mΩ; (4)Nominal load current IL(nom): 1.3 A; (5)Operating temperature Ta: -30 to +85 ℃.

Features

ISP752T features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Thermal shutdown with restart; (5)ESD - Protection; (6)Overvoltage protection (including load dump); (7)Fast demagnetization of inductive loads; (8)Reverse battery protection with external resistor; (9)CMOS compatible input; (10)Loss of GND and loss of Vbb protection; (11)Very low standby current.

Diagrams

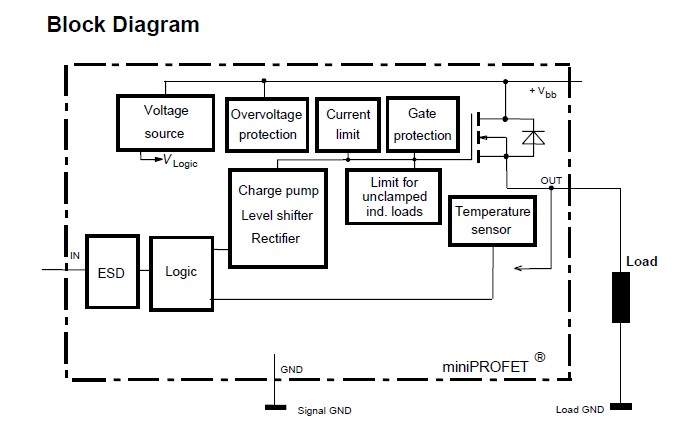

ISP752T Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ISP752T
ISP752T

Infineon Technologies

Power Switch ICs - Power Distribution Smart High Side 200mOhm 6-52V 1 3A

Data Sheet

0-1: $1.11
1-10: $0.95
10-100: $0.77
100-500: $0.60
