Product Summary

The ISSI IS62WV5128BLL-55QLI is a high speed, 2M bit static RAM organized as 128K words by 16 bits. It is fabricated using ISSI’s high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields highperformance and low power consumption devices.

Parametrics

IS62WV5128BLL-55QLI absolute maximum ratings: (1)Terminal Voltage with Respect to GND, VTERM: -0.2 to VDD+0.3V; (2)Storage Temperature, TSTG: -65 to +150℃; (3)Power Dissipation, PT: 1.0W.

Features

IS62WV5128BLL-55QLI features: (1)High-speed access time: 45ns, 55ns, 70ns; (2)CMOS low power operation; (3)TTL compatible interface levels; (4)Single power supply; (5)Fully static operation: no clock or refresh required; (6)Three state outputs; (7)Data control for upper and lower bytes; (8)Industrial temperature available; (9)2CS Option Available; (10)Lead-free available.

Diagrams

IS62WV5128BLL-55QLI block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

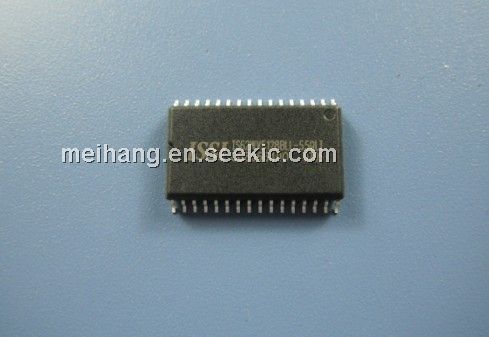

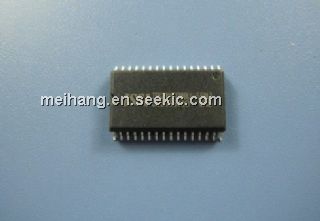

IS62WV5128BLL-55QLI
IS62WV5128BLL-55QLI

ISSI

SRAM 4M (512Kx8) 55ns Async SRAM

Data Sheet

0-168: $2.94
168-504: $2.75
504-1008: $2.63
1008-2016: $2.55
IS62WV5128BLL-55QLI-TR
IS62WV5128BLL-55QLI-TR

ISSI

SRAM 4M (512Kx8) 55ns Async SRAM

Data Sheet

0-1000: $2.63
1000-2000: $2.55
