M30620FCAFP

Product Summary

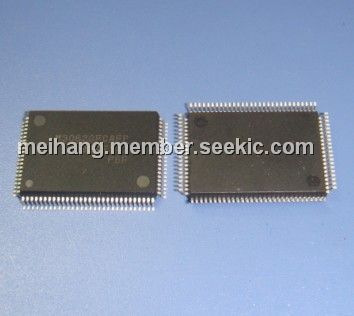

The M30620FCAFP is a single-chip microcomputer. It is packaged in a 100-pin plastic molded QFP. The M30620FCAFP operates using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, it is capable of executing instructions at high speed. The M30620FCAFP also features a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications. The applications of it are Audio, cameras, office equipment, communications equipment, portable equipment.

Parametrics

M30620FCAFP absolute maximum ratings: (1)Supply voltage:-0.3 to 6.5; (2)Analog supply voltage:-0.3 to 6.5; (3)Input voltage:-0.3V to VCC+0.3V; (4)Output voltage:-0.3V to VCC+0.3V; (5)Power dissipation:300mW; (6)Operating ambient temperature:-20℃ to 85℃; (7)Storage temperature:-65℃ to 150℃.

Features

M30620FCAFP features: (1)Memory capacity:ROM (See Figure 1.1.4. ROM Expansion) RAM 3K to 20K bytes; (2)Shortest instruction execution time:62.5ns (f(XIN)=16MHZ,VCC=5V); (3)100ns (f(XIN)=10MHZ, VCC=3V, with software one-wait) : Mask ROM, flash memory 5V version; (4)Supply voltage:4.2V to 5.5V (f(XIN)=16MHZ, without software wait) : Mask ROM, flash memory 5V version; (5)2.7V to 5.5V (f(XIN)=10MHZ with software one-wait) : Mask ROM, flash memory 5V version; (6)Low power consumption:25.5mW ( f(XIN)=10MHZ, with software one-wait, VCC = 3V); (7)Interrupts:25 internal and 8 external interrupt sources, 4 software interrupt sources; 7 levels (including key input interrupt); (8)Multifunction 16-bit timer:5 output timers + 6 input timers; (9)Serial I/O:5 channels (3 for UART or clock synchronous, 2 for clock synchronous); (10)DMAC:2 channels (trigger: 24 sources); (11)A-D converter:10 bits X 8 channels (Expandable up to 10 channels); (12)D-A converter:8 bits X 2 channels; (13)CRC calculation circuit:1 circuit; (14)Watchdog timer:1 line; (15)Programmable I/O:87 lines; (16)Input port:1 line (P85 shared with NMI pin); (17)Memory expansion:Available (to a maximum of 1M bytes); (18)Chip select output:4 lines; (19)Clock generating circuit:2 built-in clock generation circuits.

Diagrams
