Product Summary
The GAL20V8B-15LJNI is a 5ns maximum propagation delay time, combining a high performance CMOS process with Electrically Eras-able (E2) floating gate technology to provide the highest speed performance available in the PLD market. High speed erase times(<100ms) allow the GAL20V8B-15LJNI to be reprogrammed quickly and efficiently.
Parametrics
GAL20V8B-15LJNI absolute maximum ratings: (1)Supply voltage VCC: –0.5 to +7V; (2)Input voltage applied: –2.5 to VCC +1.0V; (3)Off-state output voltage applied:–2.5 to VCC +1.0V; (4)Storage Temperature: –65 to 150℃; (5)Ambient Temperature with Power Applied:–55 to 125℃.
Features
GAL20V8B-15LJNI features: (1)50% to 75% reduction in power from bipolar; (2)active pull-ups on all pins; (3)eight output logic macrocells; (4)electronic signature for identification; (5)lead-free package options.

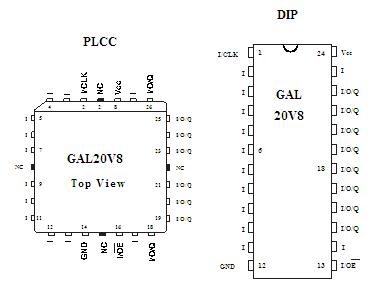

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 GAL20V8B-15LJNI |
Lattice |
SPLD - Simple Programmable Logic Devices HI PERF E2CMOS PLD |
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
GAL20V8B-15LJNI |
Lattice |
SPLD - Simple Programmable Logic Devices HI PERF E2CMOS PLD |
Data Sheet |
Negotiable |
|
||||||
|
GAL20V8B-20QJNI |
Lattice |
SPLD - Simple Programmable Logic Devices HI PERF E2CMOS PLD |
Data Sheet |
Negotiable |
|
||||||
|
GAL20V8B-25QJI |
Lattice |
SPLD - Simple Programmable Logic Devices HI PERF E2CMOS PLD |
Data Sheet |
|
|
||||||
|
GAL20V8B-25QPI |
Lattice |
SPLD - Simple Programmable Logic Devices HI PERF E2CMOS PLD |
Data Sheet |
|
|
||||||
|
GAL20V8B-25QP |
Lattice |
SPLD - Simple Programmable Logic Devices 5V 20 I/O |
Data Sheet |
|
|
||||||
|
GAL20V8B-25LP |
Lattice |
SPLD - Simple Programmable Logic Devices 5V 20 I/O |
Data Sheet |
|
|
||||||
