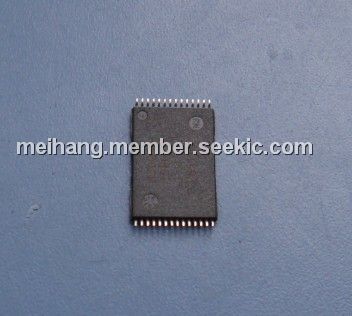

AT28C256E-20TI

CMOS E2PROM, Low Power Dissipation, 0.6V, TSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.95~1.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.95~1.05

PartNumber:: AT28C256E-20TI

Brand:: ATMEL Corporation - ATMEL | Pack: TSOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. cathy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-16

From Other Seller

Part Number:AT28C256E-20TI
US $0.95 - 1.05
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

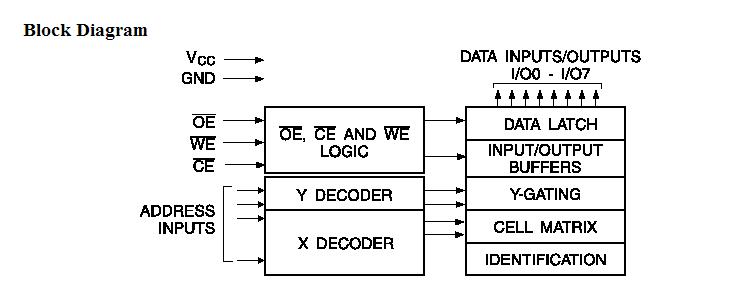

The AT28C256E-20TI is accessed like a Static RAM for the reador write cycle without the need for external components.The device contains a 64-byte page register to allow writ-ing of up to 64-bytes simultaneously. During a write cycle,the addresses and 1 to 64-bytes of data are internallylatched, freeing the address and data bus for other opera-tions. Following the initiation of a write cycle, the AT28C256E-20TI will automatically write the latched data using an internalcontrol timer. The end of a write cycle can be detected byDATA POLLING of I/O7. Once the end of a write cycle hasbeen detected a new access for a read or write can begin

Parametrics

AT28C256E-20TI absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages(including NC Pins)with Respect to ground: -0.6V to +6.25V; (4)All Output Voltageswith Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE and A9with Respect to Ground: -0.6V to +13.5V.

Features

AT28C256E-20TI features: (1)Fast Read Access Time: 150 ns; (2)Automatic Page Write Operation; (3)Fast Write Cycle Times; (4)Low Power Dissipation; (5)Hardware and Software Data Protection; (6)DATA Polling for End of Write Detection; (7)High Reliability CMOS Technology; (8)Single 5V±10% Supply; (9)CMOS and TTL Compatible Inputs and Outputs; (10)JEDEC Approved Byte-Wide Pinout; (11)Full Military, Commercial, and Industrial Temperature Ranges.
