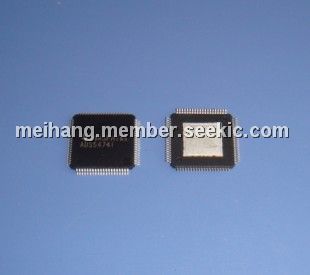

Product Summary

The ADS5474I is a 14-bit, 400-MSPS analog-to-digital converter (ADC) that operates from both a 5-V supply and 3.3-V supply while providing LVDS-compatible digital outputs. The ADS5474I is one of a family of 12-, 13-, and 14-bit ADCs that operate from 210 MSPS to 500 MSPS. The applications of the ADS5474I are Test and Measurement Instrumentation, Software-Defined Radio, Data Acquisition, Power Amplifier Linearization, Communication Instrumentation, Radar.

Parametrics

ADS5474I absolute maximum ratings: (1)Analog input to GND:-0.3 to (AVDD5 + 0.3) V; (2)Clock input to GND:-0.3 to (AVDD5 + 0.3) V; (3)CLK to CLK:±2.5 V; (4)Digital data output to GND:-0.3 to (DVDD3 + 0.3) V; (5)Operating temperature range:-40℃ to +85℃; (6)Maximum junction temperature:+150℃; (7)Storage temperature range:-65℃ to +150℃; (8)ESD, human-body model (HBM):2 kV.

Features

ADS5474I features: (1)400-MSPS Sample Rate; (2)14-Bit Resolution, 11.2-Bits ENOB; (3)1.4-GHz Input Bandwidth; (4)SFDR = 80 dBc at 230 MHz and 400 MSPS; (5)SNR = 69.8 dBFS at 230 MHz and 400 MSPS; (6)2.2 V PP Differential Input Voltage; (7)LVDS-Compatible Outputs; (8)Total Power Dissipation: 2.5 W; (9)Power Down Mode: 50mW; (10)Offset Binary Output Format; (11)Output Data Transitions on the Rising and Falling Edges of a Half-Rate Output Clock; (12)On-Chip Analog Buffer, Track-and-Hold, and Reference Circuit.

Diagrams

ADS5474I block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADS5474IPFP
ADS5474IPFP

Texas Instruments

ADC (A/D Converters) 14B 400 MSPS

Data Sheet

0-1: $132.24
1-25: $121.30
ADS5474IPFPG4
ADS5474IPFPG4

Texas Instruments

ADC (A/D Converters) 14B 400 MSPS

Data Sheet

0-74: $118.60
ADS5474IPFPR
ADS5474IPFPR

Texas Instruments

ADC (A/D Converters) 14B 400 MSPS

Data Sheet

0-814: $110.70
814-1000: $110.70
ADS5474IPFPRG4
ADS5474IPFPRG4

Texas Instruments

ADC (A/D Converters) 14B 400 MSPS

Data Sheet

0-814: $110.70
814-1000: $110.70
