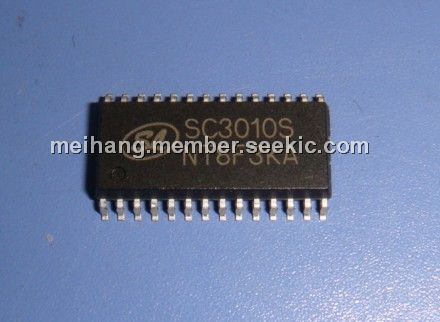

Product Summary

The SC3010 is a remote control transmitter utilizing CMOS Technology specially designed for use on general purpose (RC-5) infrared applications with low voltage supply and large debounce time. SC3010 supports 32 systems. Each system has a maximum of 64 commands; thus, SC3010 can provide up to a total of 2,048 commands. The SC3010 applications include television, VCR, audio equipment, multi-media system and personal computer.

Parametrics

SC3010 absolute maximum ratings: (1)Supply Voltage: -0.3~5.5 V; (2)Input Voltage: -0.5~VDD+0.5 V; (3)Output Voltage: -0.5~VDD+0.5 V; (4)Operating Temperature: -20~85℃.

Features

SC3010 features: (1)CMOS Technology; (2)Low Voltage Supply; (3)Supports up to 32 systems; (4)Single Pin Oscillator; (5)Bi-phase Transmission Technique; (6)Provides 2,048 Commands.

Diagrams

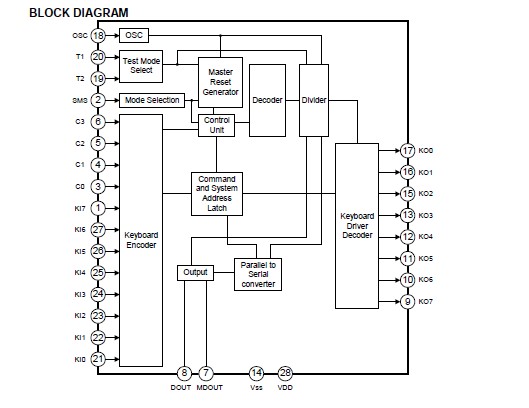

SC3010 BLOCK DIAGRAM
