Product Summary

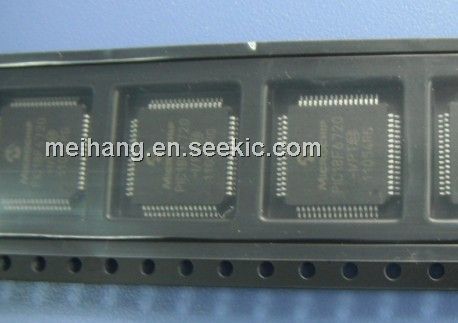

The PIC18F6720-I/PT is a 64-Pin Flash Microcontroller with nanoWatt Technology.
Parametrics
PIC18F6720-I/PT absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS: 0V to +13.25V; (6)Voltage on RA4 with respect to Vss: 0V to +8.5V; (7)Total power dissipation: 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA; (14)Maximum current sunk by all ports: 200mA; (15)Maximum current sourced by all ports: 200 mA.
Features
PIC18F6720-I/PT features: (1)High current sink/source 25 mA/25 mA; (2)Four external interrupts; (3)Four input change interrupts; (4)Four 8-bit/16-bit Timer/Counter modules; (5)Up to 3 Capture/Compare/PWM (CCP) modules; (6)Master Synchronous Serial Port (MSSP) module supporting 3-wire SPI? (all 4 modes) and I2C Master and Slave modes; (7)Addressable USART module: Supports RS-485 and RS-232; (8)Enhanced Addressable USART module: Supports RS-485, RS-232 and LIN 1.2; Auto-Wake-up on Start bit; Auto-Baud Detect; (9)10-bit, up to 12-channel Analog-to-Digital Converter module (A/D): Auto-acquisition capability; Conversion available during Sleep; (10)Dual analog comparators with input multiplexing; (11)C compiler optimized architecture: Optional extended instruction set designed to optimize re-entrant code; (12)1000 erase/write cycle Flash program memory typical; (13)Flash Retention: 100 years typical; (14)Priority levels for interrupts; (15)8 x 8 Single-Cycle Hardware Multiplier; (16)Extended Watchdog Timer (WDT): Programmable period from 4 ms to 131s; 2% stability over VDD and temperature; (17)In-Circuit Serial Programming (ICSP) via two pins; (18)In-Circuit Debug (ICD) via two pins; (19)Wide operating voltage range: 2.0V to 5.5V.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() PIC18F6720-I/PT |
![]() Microchip Technology |
![]() 8-bit Microcontrollers (MCU) 128KB 3840 RAM 52I/O |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() PIC18F6720-I/PTC01 |
![]() Microchip Technology |
![]() IC PIC MCU FLASH 65KX16 64TQFP |
![]() Data Sheet |
![]() Negotiable |
|
