MSP430F2012TPWR

ultralow-power microcontroller, 62.5 ns, 3.6 V, TSSOP14

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~1.00

PartNumber:: MSP430F2012TPWR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. cathy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-16

From Other Seller

Part Number:MSP430F2012TPWR
US $0.80 - 1.00
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
STRG6653

US $1.20 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

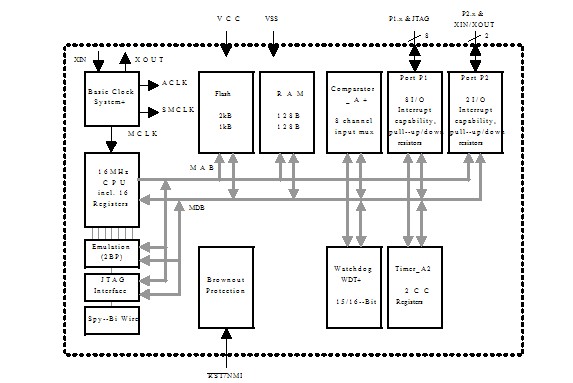

The MSP430F2012TPWR ultralow-power microcontroller consists of several devices featuringdifferent sets of peripherals targeted for various applications. The architecture, combined with five low-powermodes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum codeefficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in lessthan 1μs. The MSP430F2012TPWR is an ultralow-power mixed signal microcontroller with a built-in 16-bit timer, and tenI/O pins. Typical applications of MSP430F2012TPWR include sensor systems that capture analog signals, convert them to digital values, and thenprocess the data for display or for transmission to a host system. Stand alone RF sensor front end is anotherarea of application.

Parametrics

MSP430F2012TPWR absolute maximum ratings: (1)Voltage applied at VCC to VSS: 0.3 V to 4.1 V; (2)Voltage applied to any pin (see Note 2): 0.3 V to VCC+0.3 V; (3)Diode current at any device terminal: ±2mA; (4)Storage temperature (unprogrammed device, see Note 3): 55℃ to 150℃; (5)Storage temperature (programmed device, see Note 3): 40℃ to 85℃.

Features

MSP430F2012TPWR features: (1)Low Supply Voltage Range 1.8 V to 3.6 V; (2)Ultralow Power Consumption; (3)Five Power-Saving Modes; (4)Ultrafast Wake-Up From Standby Mode inLess Than 1 μs; (5)16-Bit RISC Architecture, 62.5 ns Instruction Cycle Time; (6)Universal Serial Interface (USI) Supporting SPI and I2C; (7)Brownout Detector; (8)Serial Onboard Programming,No External Programming Voltage Needed Programmable Code Protection by Security Fuse; (9)On-Chip Emulation Logic With Spy-Bi-Wire Interface.
