Product Summary

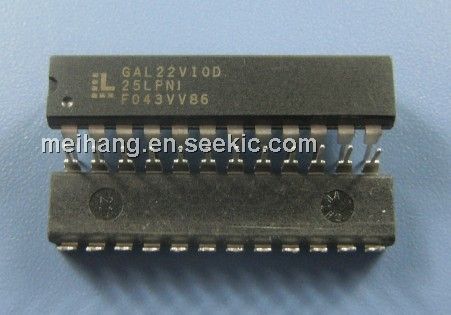

The GAL22V10D-25LPNI is a high performance E2CMOS PLD generic array logic. The GAL22V10D-25LPNI, at 4ns maximum propagation delay time, combines a high performance CMOS process with Electrically Erasable (E2) floating gate technology to provide the highest performance available of any 22V10 device on the market. CMOS circuitry allows the GAL22V10D-25LPNI to consume much less power when compared to bipolar 22V10 devices. E2 technology offers high speed (<100ms) erase times, providing the ability to reprogram or reconfigure the device quickly and efficiently. The generic architecture provides maximum design flexibility by allowing the Output Logic Macrocell (OLMC) to be configured by the user. The GAL22V10D-25LPNI is fully function/fuse map/parametric compatible with standard bipolar and CMOS 22V10 devices.

Parametrics

GAL22V10D-25LPNI absolute maximum ratings: (1)Supply voltage VCC: -0.5 to +7V; (2)Input voltage applied: -2.5 to VCC +1.0V; (3)Off-state output voltage applied: -2.5 to VCC +1.0V; (4)Storage Temperature: -65 to 150℃; (5)Ambient Temperature with Power Applied: -55 to 125℃.

Features

GAL22V10D-25LPNI features: (1)HIGH PERFORMANCE E2CMOS&reg; TECHNOLOGY 4 ns Maximum Propagation Delay, Fmax = 250 MHz, 3.5 ns Maximum from Clock Input to Data Output, UltraMOS Advanced CMOS Technology; (2)ACTIVE PULL-UPS ON ALL PINS; (3)COMPATIBLE WITH STANDARD 22V10 DEVICES Fully Function/Fuse-Map/Parametric Compatible with Bipolar and UVCMOS 22V10 Devices; (4)50% to 75% REDUCTION IN POWER VERSUS BIPOLAR 90mA Typical Icc on Low Power Device, 45mA Typical Icc on Quarter Power Device; (5)E2 CELL TECHNOLOGY Reconfigurable Logic, Reprogrammable Cells, 100% Tested/100% Yields, High Speed Electrical Erasure (<100ms), 20 Year Data Retention; (6)TEN OUTPUT LOGIC MACROCELLS Maximum Flexibility for Complex Logic Designs; (7)PRELOAD AND POWER-ON RESET OF REGISTERS 100% Functional Testability.

Diagrams

GAL22V10D-25LPNI block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
GAL22V10D-25LPNI
GAL22V10D-25LPNI

Lattice

SPLD - Simple Programmable Logic Devices HI PERF E2CMOS PLD

Data Sheet

0-300: $1.57
