Product Summary

The EP2S60F1020C5N is an FPGA. It is based on a 1.2-V, 90-nm, all-layer copper SRAM process and features a new logic structure that maximizes performance, and enables device densities approaching 180,000 equivalent logic elements (LEs). The EP2S60F1020C5N offers up to 9 Mbits of on-chip, TriMatrix memory for demanding, memory intensive applications and has up to 96 DSP blocks with up to 384 (18-bit × 18-bit) multipliers for efficient implementation of high performance filters and other DSP functions. The EP2S60F1020C5N supports various I/O standards along with support for 1-gigabit per second (Gbps) source synchronous signaling with DPA circuitry.

Parametrics

EP2S60F1020C5N absolute maximum ratings: (1)Supply voltage:–0.5V to 1.8V; (2)Supply voltage:–0.5V to 4.6V; (3)Supply voltage:–0.5V to 4.6V; (4)Analog power supply for PLLs:–0.5V to 1.8V; (5)Digital power supply for PLLs:–0.5V to 1.8V; (6)DC input voltage:–0.5V to 4.6V; (7)DC output current, per pin:–25mA to 40mA; (8)Storage temperature:–65℃ to 150℃; (9)Junction temperature:–55℃ to 125℃.

Features

EP2S60F1020C5N features: (1)Support for numerous single-ended and differential I/O standards; (2)High-speed differential I/O support with DPA circuitry for 1-Gbps performance; (3)Support for high-speed networking and communications bus standards including Parallel RapidIO, SPI-4 Phase 2 (POS-PHY Level 4), HyperTransport technology, and SFI-4; (4)Support for high-speed external memory, including DDR and DDR2 SDRAM, RLDRAM II, QDR II SRAM, and SDR SDRAM; (5)Support for multiple intellectual property megafunctions from Altera MegaCore functions and Altera Megafunction Partners Program (AMPPSM) megafunctions; (6)Support for design security using configuration bitstream encryption; (7)Support for remote configuration updates; (8)15,600 to 179,400 equivalent LEs; (9)New and innovative adaptive logic module (ALM), the basic building block of the Stratix II architecture, maximizes performance and resource usage efficiency; (10)Up to 9,383,040 RAM bits (1,172,880 bytes) available without reducing logic resources; (11)TriMatrix memory consisting of three RAM block sizes to implement true dual-port memory and first-in first-out (FIFO)buffers; (12)High-speed DSP blocks provide dedicated implementation of multipliers (at up to 450 MHz), multiply-accumulate functions, and finite impulse response (FIR) filters; (13)Up to 16 global clocks with 24 clocking resources per device region.

Diagrams

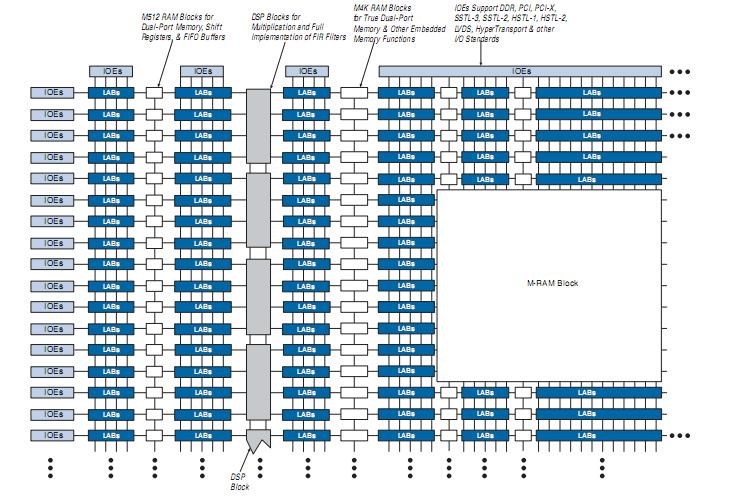

EP2S60F1020C5N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP2S60F1020C5N
EP2S60F1020C5N


IC STRATIX II FPGA 60K 1020-FBGA

Data Sheet

0-6: $540.00
